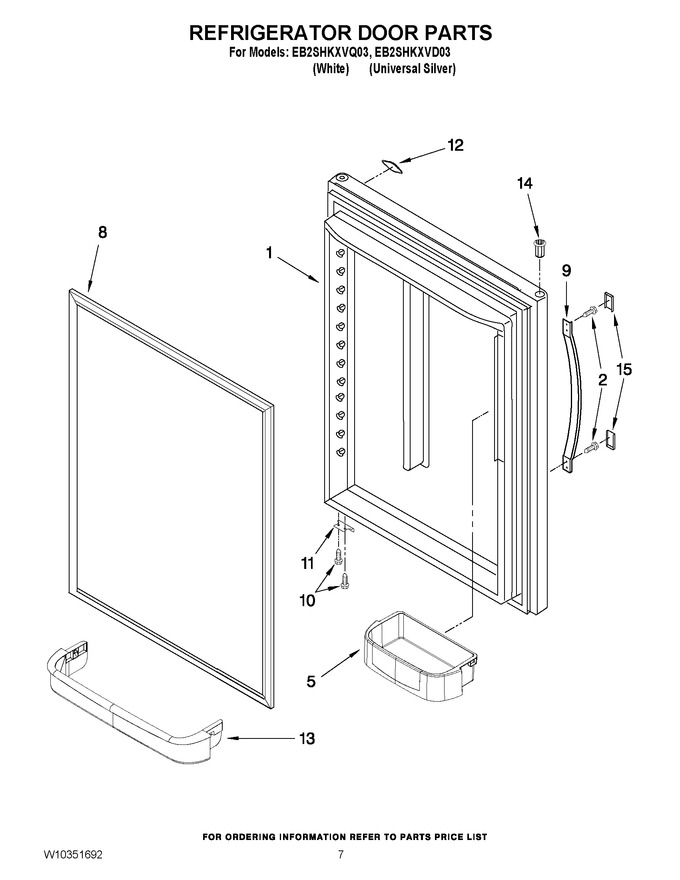

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12658572WQ		Door, Refrigerator (white)   (Replaces: 12658572W)				$ 679.00
1	13023866D		Door, Refrigerator (universal Silver)		Appelez-nous	-
2	60001022		Screw (2)   (Replaces: 12990508)				$ 59.77
5	WP67001021		Bucket, Medium (5)   (Replaces: 12557204V)				$ 76.46
8	WPW10436248		Gasket, Door (black)   (Replaces: W10164035N)				$ 301.64
8	W10443313		Gasket, Door (white)   (Replaces: W10164034N)				$ 324.91
9	12691001W		Handle, Door (white)				$ 91.04
9	WP2217185B		Handle, Door (black)   (Replaces: 12691001B)				$ 171.13
10	WP98165		Screw   (Replaces: 12990504)				$ 7.71
11	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 62.36
11	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 13.28
12	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 83.86
13	67001019		Retainer, Ref Door   (Replaces: 12557905)			Immediately	$ 101.61
14	67004978		Bushing (4) (black)   (Replaces: 10961006B)				$ 19.89
14	WP67004977		Bushing (4) (white)   (Replaces: 10961006W)				$ 7.38
15	12691202B		Trim, Handle (black)		Appelez-nous	-
15	12691202W		Trim,handle (white)		Appelez-nous	-
