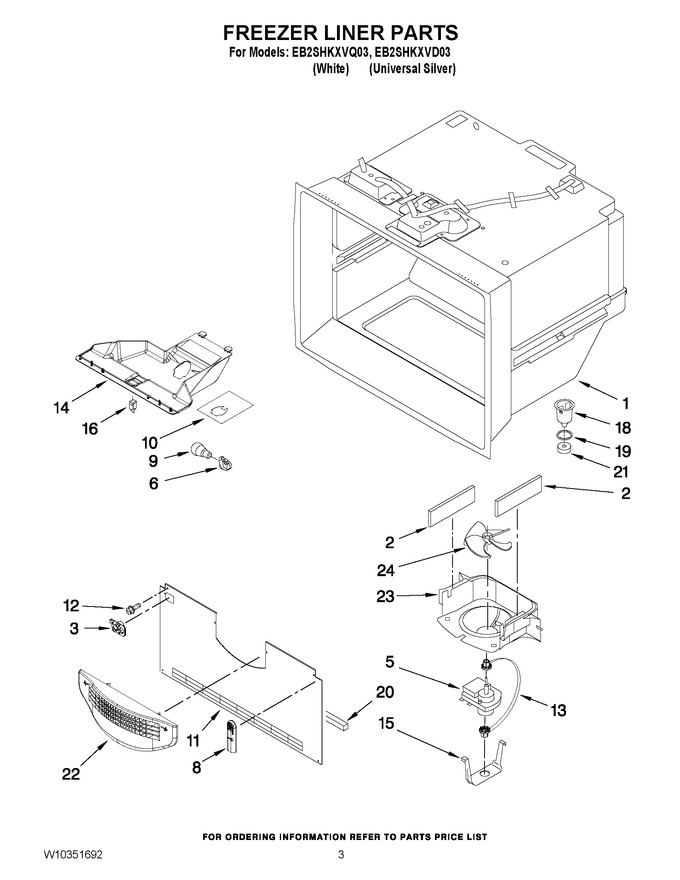

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W11451451 | Gasket, Foam (Replaces: A3189397) |
|
$ 11.73 | |||||
| 3 | W11448709 | Guide-fill Tube (Replaces: 12932103) |
|
$ 23.28 | |||||
| 5 | WPW10128551 | Motor, Evaporator (Replaces: W10128551) |
|
Immediately | $ 70.88 | ||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701V) |
|
Immediately | $ 12.48 | ||||
| 8 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.39 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: 2255743N) |
|
Immediately | $ 10.17 | ||||
| 10 | W11469652 | Foil-fz Light (Replaces: W10277466) |
|
$ 20.96 | |||||
| 11 | W10308415 | Cover, Evaporator |
|
$ 269.76 | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 13 | W10121318 | Grommet |
|
$ 45.72 | |||||
| 14 | WPW10277025 | Module-fz Light (Replaces: W10277025) |
|
$ 120.96 | |||||
| 15 | 13058002 | Clip, Evap Motor |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 12466105) |
|
Immediately | $ 33.57 | ||||
| 18 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 46.35 | ||||
| 19 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.32 | |||||
| 20 | W10856123 | Gasket, Bottom (Replaces: A3189392) |
|
Immediately | $ 7.25 | ||||
| 21 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.00 | |||||
| 22 | WPW10175909 | Grille, Fz Air (Replaces: 13024803) |
|
Immediately | $ 77.15 | ||||
| 23 | WPW10167023 | Shroud, Evap Fan (Replaces: 13057901) |
|
Immediately | $ 94.12 | ||||
| 24 | WP2169142 | Blade, Fan (evaporator) (Replaces: 2169142) |
|
Immediately | $ 39.07 |
