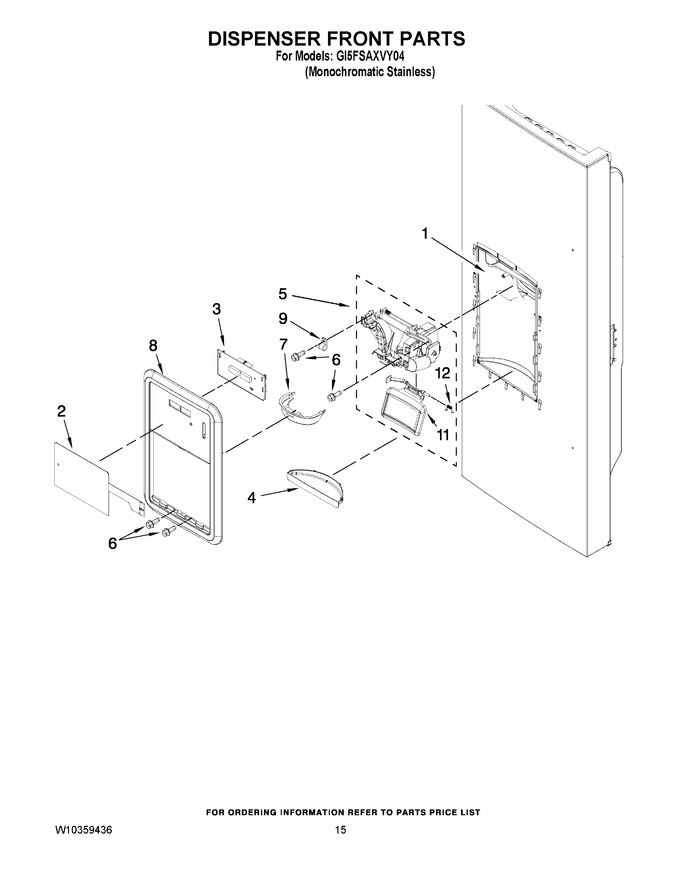

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10740218		Dispenser Keyboard (stainless)   (Replaces: W10315980)				$ 270.41
3	W10162500		Board, L.v.				$ 194.39
4	W11676505		Sump, Dispenser (midnight Grey (dark))   (Replaces: W10185236)				$ 16.52
5	WP13005706		Chute, Ext/yoke (includes Switch) (midnight Grey (dark))   (Replaces: 13005706)				$ 244.72
6	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
7	67006295		Ring, Target   (Replaces: 12958301)				$ 55.57
8	WPW10310690		Facade, Dispenser (apollo Grey W/stainless Insert)   (Replaces: W10310690)				$ 235.26
9	M0108106		Clamp, Tube				$ 69.95
11	WPW10185234		Yoke/pad Assembly (midnight Grey (dark))   (Replaces: W10185234)				$ 8.84
12	WP12565502		Spring   (Replaces: 12565502)				$ 8.43

    View Diagram in Separate Window       Print Part List
