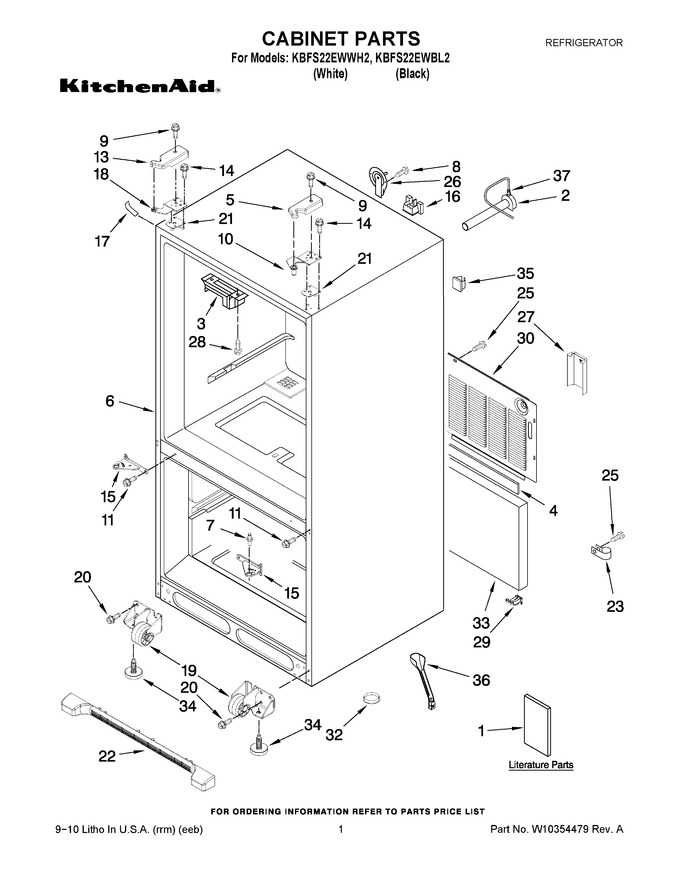

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10322956 | Tech Sheet |
|
- | |||||
| 1 | W10277319 | Energy Guide |
|
- | |||||
| 1 | W10187309 | Owners Manual |
|
- | |||||
| 2 | W11176463 | Elbow, Fill Tube (Replaces: 10463203SP) |
|
Immediately | $ 119.86 | ||||
| 3 | WP67003405 | Block, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | 67005958 | Cover, Right Hinge (white) (Replaces: 12962302W) |
|
$ 21.57 | |||||
| 5 | WP67005956 | Cover, Right Hinge (black) (Replaces: 12962302B) |
|
$ 22.54 | |||||
| 6 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 8.78 | |||||
| 8 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | W11592374 | Hinge, Top Right (Replaces: 12963205ED) |
|
Immediately | $ 31.90 | ||||
| 11 | W11573362 | Screw (6) (Replaces: 12992201) |
|
$ 14.72 | |||||
| 13 | W10337647 | Cover, Left Hinge (black) (Replaces: W10217489) |
|
Immediately | $ 23.33 | ||||
| 13 | WPW10337634 | Cover, Left Hinge (white) (Replaces: W10217491) |
|
Immediately | $ 23.54 | ||||
| 14 | WP489349 | Screw (6) (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | 13000002WD | Hinge, Center (white - Rh) |
|
$ 160.99 | |||||
| 15 | W10918164 | Hinge, Center (black - Rh) (Replaces: 13000008ED) |
|
$ 91.53 | |||||
| 15 | W10918164 | Hinge, Center (black - Lh) (Replaces: 13000007ED) |
|
$ 91.53 | |||||
| 15 | W10918113 | Hinge, Center (white - Lh) (Replaces: 13000001WD) |
|
$ 97.92 | |||||
| 16 | 12777701 | Block, Fill Tube |
|
$ 7.17 | |||||
| 17 | 12587703W | Cover, Corner (2) (white) |
|
$ 22.90 | |||||
| 17 | 67003485 | Cover, Corner (2) (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 18 | W11592375 | Hinge, Top Left (Replaces: 12963204ED) |
|
$ 31.92 | |||||
| 19 | W11820444 | Roller Assembly (left) (Replaces: W10275850) |
|
Immediately | $ 37.35 | ||||
| 19 | W11820445 | Roller Assembly (right) (Replaces: W10275849) |
|
Immediately | $ 37.35 | ||||
| 20 | 67006564 | Screw (8) (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | 12999502 | Shim, Hinge (right) |
|
$ 100.60 | |||||
| 21 | 12999501 | Shim, Hinge (left) |
|
$ 99.53 | |||||
| 22 | WPW10534161 | Grille, Toe (white) (Replaces: W10236195) |
|
$ 147.09 | |||||
| 22 | WPW10534162 | Grille, Toe (black) (Replaces: W10236196) |
|
$ 148.16 | |||||
| 23 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 25 | 67006425 | Screw (10) (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 26 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 27 | W10208593 | Guard, Water Valve |
|
$ 15.71 | |||||
| 28 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 29 | 12831101 | Sweep, Dual Tube |
|
$ 13.03 | |||||
| 30 | W10210980 | Cover, Unit |
|
$ 203.54 | |||||
| 32 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 33 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 34 | WPW10141622 | Brake, Foot (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 35 | WPM0104106 | Clip (2) (Replaces: M0104106) |
|
$ 8.17 | |||||
| 36 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 37 | WPM0114003 | Clip (Replaces: M0114003SP) |
|
$ 11.60 |
