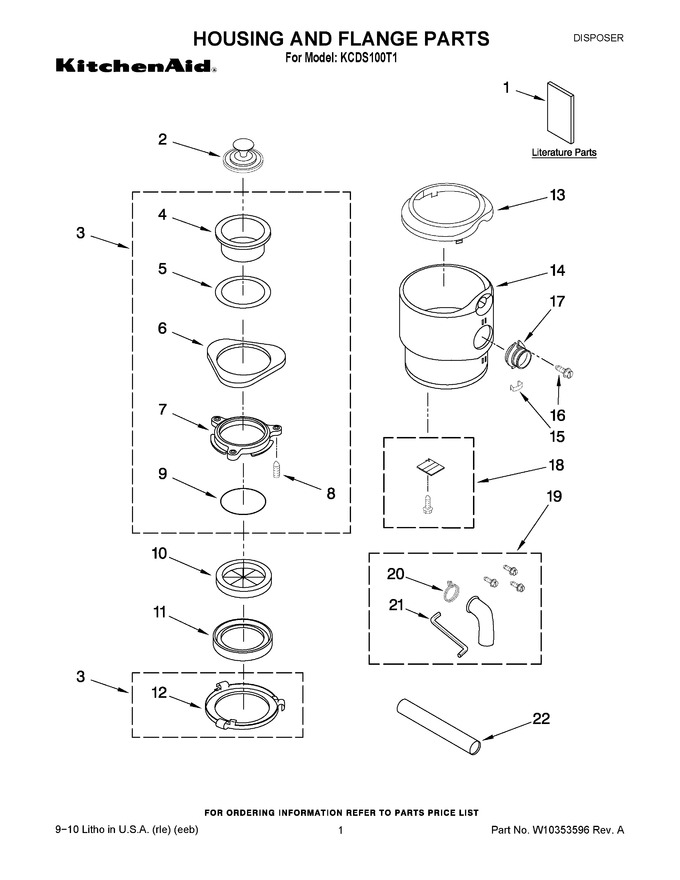

01 - Housing And Flange Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10353587 | Guide, Use & Care |
|
- | |||||
| 2 | WP4211398A | Stopper Assembly (Replaces: 4211398) |
|
$ 89.55 | |||||
| 3 | W10179031A | Mounting Assembly (Replaces: W10222137) |
|
$ 86.00 | |||||
| 4 | W10171101 | Flange, Sink |
|
- | |||||
| 5 | 4211606 | Gasket, Fiber |
|
$ 22.21 | |||||
| 6 | W10171102 | Flange, Backup |
|
- | |||||
| 7 | 4211304 | Flange, Mounting |
|
$ 137.21 | |||||
| 8 | W10352985 | Screw, Backup |
|
- | |||||
| 9 | 4211306 | Ring, Snap |
|
$ 10.56 | |||||
| 10 | W11087190 | Baffle, Sink Guard (removeable) (Replaces: W10171487) |
|
$ 16.16 | |||||
| 11 | W10171105 | Gasket, Mounting |
|
$ 47.57 | |||||
| 12 | 4211308 | Flange, Body |
|
- | |||||
| 13 | W10171483 | Trim, Shell (cap) |
|
- | |||||
| 14 | W10171489 | Shell, Trim |
|
- | |||||
| 15 | 8174342 | Clip |
|
- | |||||
| 16 | W10171108 | Screw |
|
- | |||||
| 17 | W10352995 | Coupler, Flex |
|
$ 93.25 | |||||
| 18 | 8174315 | Cover, Terminal |
|
- | |||||
| 19 | W10352987 | Installation Kit |
|
- | |||||
| 20 | W11622908 | Clamp, Spring (Replaces: W10171111) |
|
$ 23.33 | |||||
| 21 | WP8174310 | Wrench (Replaces: 8174310) |
|
$ 22.35 | |||||
| 22 | W10171112 | Tube, Discharge |
|
$ 35.75 |
