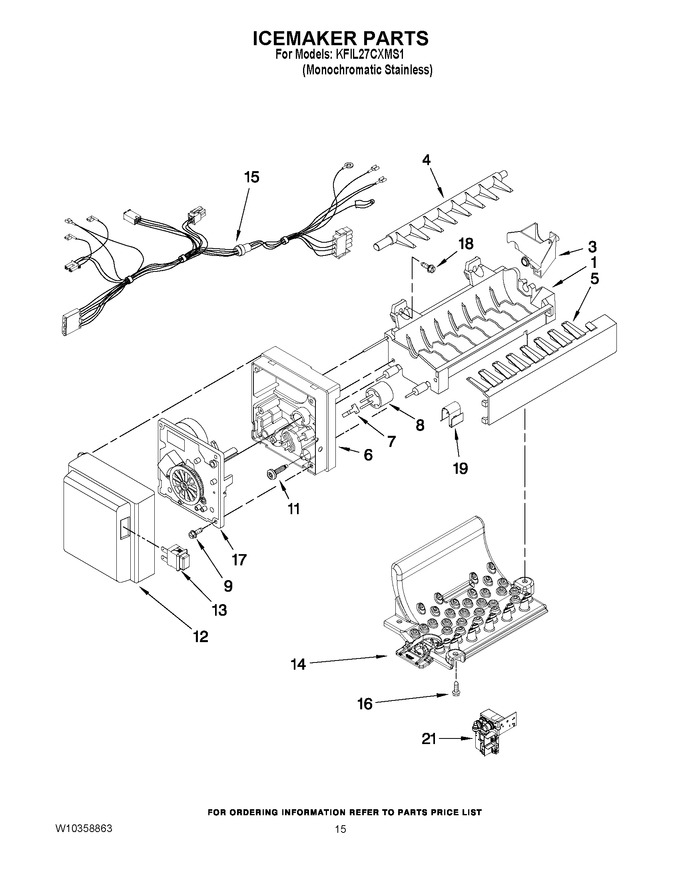

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10161596 | Mold & Heater Assembly (also Order 542638 Grease) |
|
$ 192.37 | |||||
| 3 | W10160726 | Cup, Fill |
|
$ 81.49 | |||||
| 4 | W10318644 | Ejector |
|
$ 26.59 | |||||
| 5 | W10267602 | Ice Stripper |
|
$ 54.35 | |||||
| 6 | WP2195914 | Support, Housing (Replaces: 2194712) |
|
$ 104.57 | |||||
| 7 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.05 | |||||
| 8 | WP627985 | Thermostat (also Order 542369 Cement) (Replaces: 628397) |
|
$ 109.18 | |||||
| 9 | W10001240 | Screw (3) |
|
$ 8.78 | |||||
| 11 | 8533917 | Screw (2) |
|
$ 13.37 | |||||
| 12 | W10212429 | Cover |
|
$ 10.47 | |||||
| 13 | W10884855 | Switch, On-off (Replaces: W10212431) |
|
$ 93.51 | |||||
| 14 | W10194598 | Duct, Impinger Top |
|
$ 224.02 | |||||
| 15 | W10292582 | Harness, Icemaker |
|
$ 55.86 | |||||
| 16 | 67006425 | Screw, Impinger (Replaces: 12990511K) |
|
Immediately | $ 6.95 | ||||
| 17 | 8201515 | Module Assembly (Replaces: 626691) |
|
Immediately | $ 141.64 | ||||
| 18 | W10001240 | Screw (3) |
|
$ 8.78 | |||||
| 19 | WP628379 | Clip (Replaces: 628379) |
|
$ 10.57 | |||||
| 21 | WPW10270395 | Valve, Smart (Replaces: W10270395) |
|
Immediately | $ 274.02 | ||||
| 100 | WPW10122559 | Icemaker Assembly (Replaces: W10122559) |
|
Immediately | $ 271.26 | ||||
| NI | 10244904 | Coupling |
|
$ 25.37 |
