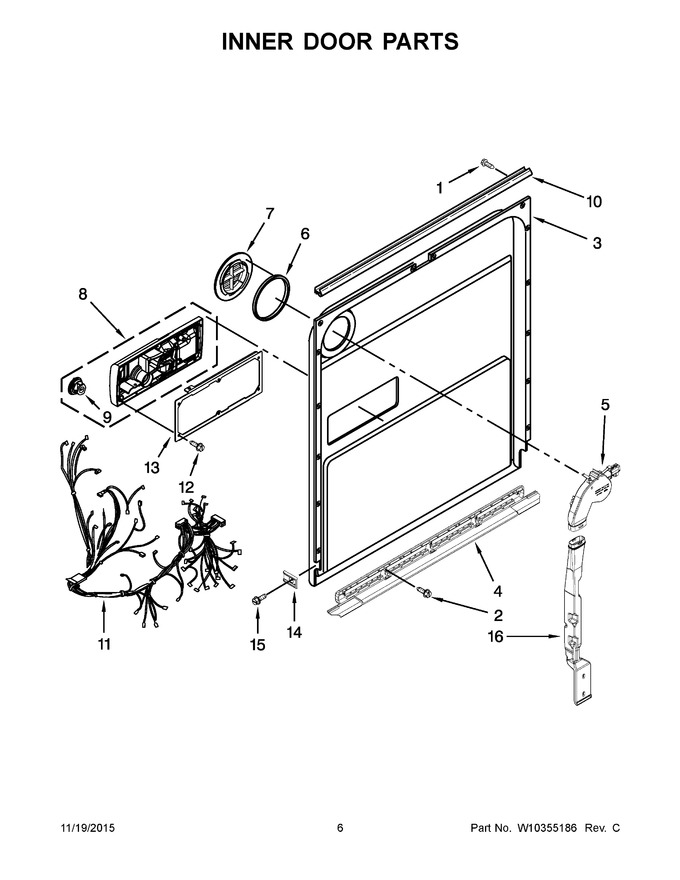

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348409 | Screw (Replaces: 3369051) |
|
Immediately | $ 8.20 | ||||
| 2 | W11631670 | Screw (Replaces: 8281217) |
|
$ 14.72 | |||||
| 3 | W10467368 | Inner Door & Mastic Assembly (also Order Item 6) (Replaces: W10195842) |
|
$ 407.06 | |||||
| 4 | WPW10497235 | Seal, Door Bottom (Replaces: W10195543) |
|
Immediately | $ 10.19 | ||||
| 5 | WPW10469574 | Vent Assembly (Replaces: W10195024) |
|
Immediately | $ 95.33 | ||||
| 6 | WP8269259 | Gasket, Vent (Replaces: 8269259) |
|
Immediately | $ 63.50 | ||||
| 7 | WPW10195032 | Deflector, Vent (also Order Item 6) (Replaces: W10195032) |
|
Immediately | $ 80.13 | ||||
| 8 | WPW10195175 | Dispenser, Assembly (Replaces: W10195174) |
|
Immediately | $ 116.18 | ||||
| 9 | WPW10077881 | Cap, Rinse Aid (Replaces: W10077881) |
|
Immediately | $ 27.85 | ||||
| 10 | WPW10195007 | Seal, Console/door (Replaces: W10195007) |
|
$ 166.86 | |||||
| 11 | W10195342 | Wiring Harness |
|
$ 227.75 | |||||
| 12 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 13 | WPW10462232 | Bracket, Dispenser (Replaces: 8535637) |
|
$ 37.79 | |||||
| 14 | W10195837 | Barrier, Vapor |
|
$ 30.01 | |||||
| 15 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 16 | WPW10195028 | Duct, Vent (black) (Replaces: W10195028) |
|
$ 80.12 |
