SELECT A DIAGRAM

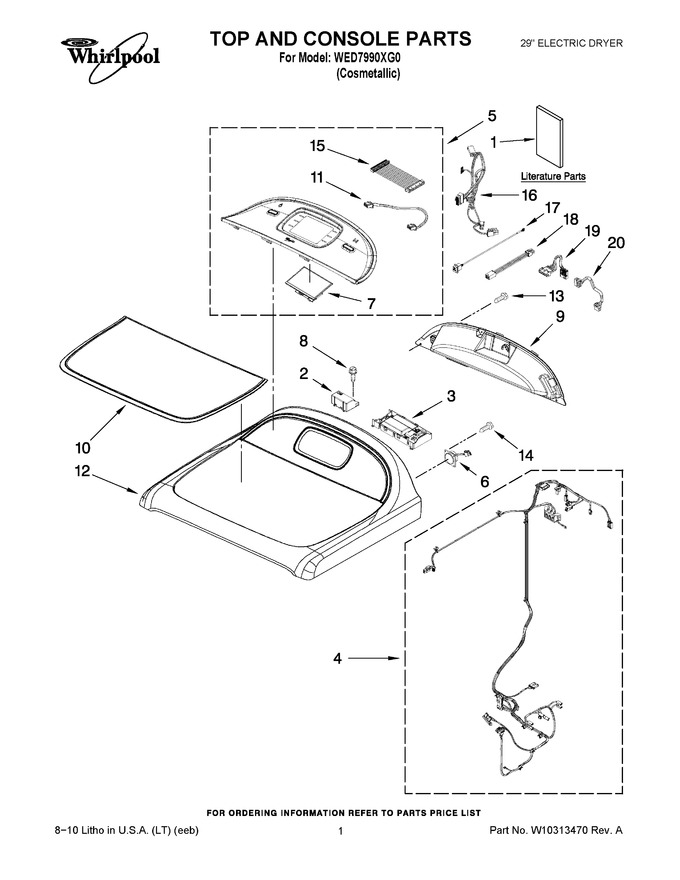

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10309063		Installation, Diagnostic Guide		Appelez-nous	-
1	W10304462		Tech Sheet		Appelez-nous	-
1	W10309054		Guide, Use & Care		Appelez-nous	-
1	W10309144		Guide, Quick Start		Appelez-nous	-
2	WPW10330449		Control, Electronic   (Replaces: W10286070)				$ 322.62
3	W10280594		Power Supply				$ 123.19
4	W10280756		Harness, Main		Appelez-nous	-
5	W10285783		Console, Fascia Assembly (complete)		Appelez-nous	-
6	W10280595		Speaker Assembly				$ 35.44
7	W10280744		Lcd Assembly User Interface		Appelez-nous	-
8	W11311945		Screw   (Replaces: 12990204)				$ 14.72
9	W10285812		Panel, Rear Console		Appelez-nous	-
10	W10285802		Panel Assembly Top		Appelez-nous	-
11	W10289382		Jumper, (to Hmi)		Appelez-nous	-
12	W10285773		Top & Console Assembly		Appelez-nous	-
13	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
14	W10300815		Screw, M2-0.89x10		Appelez-nous	-
15	W10167482		Wire Assembly Main Connection		Appelez-nous	-
16	W10280738		Jumper-user Interface		Appelez-nous	-
17	W10280760		Jumper-ui To Usb		Appelez-nous	-
18	W10299940		Jumper-ccu P14		Appelez-nous	-
19	W10280758		Jumper-ccu P8		Appelez-nous	-
20	W10280761		Jumper-ccu To Wide Iso		Appelez-nous	-
