SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts

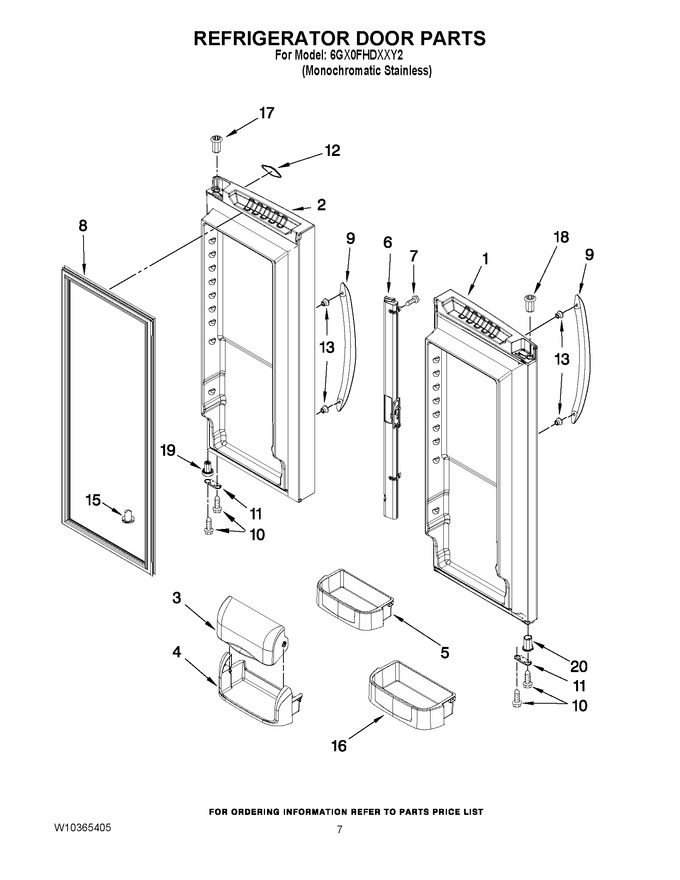

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107716S		Door, Left Stainless		Appelez-nous	-
2	13107710S		Door, Right Stainless		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 74.40
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 79.21
5	WPW10324005		Bin, Shelf (3) (medium) Mullion, Door   (Replaces: 12557212)				$ 69.98
6	12722811AP		Apollo Grey		Appelez-nous	-
7	W11311945		Screw   (Replaces: 12990204)				$ 13.25
8	W10830162		Gasket, Door (2) (apollo Grey)   (Replaces: W10179332)			Immediately	$ 223.74
9	W11351147		Handle, Door (stainless)   (Replaces: W10223019)				$ 178.40
10	WP98165		Screw   (Replaces: 12990504)				$ 7.71
11	W11401472		Stop, Door (apollo Grey)   (Replaces: 10447114)			Immediately	$ 21.20
12	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 83.86
13	WP12992902		Screw-handle   (Replaces: 12992902)				$ 10.72
15	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 55.31
16	WPW10289494		Bin, Shelf (2) (gallon)   (Replaces: W10289494)				$ 78.82
17	10961006AP		Bushing-door-up-rh				$ 8.69
18	12395501AP		Bushing-door-up-lh				$ 12.05
19	12028601AP		Bushing-door-lw-rh				$ 5.71
20	12699301AP		Bushing-door-lw-lh				$ 13.44
