SELECT A DIAGRAM

01 - Cabinet Parts

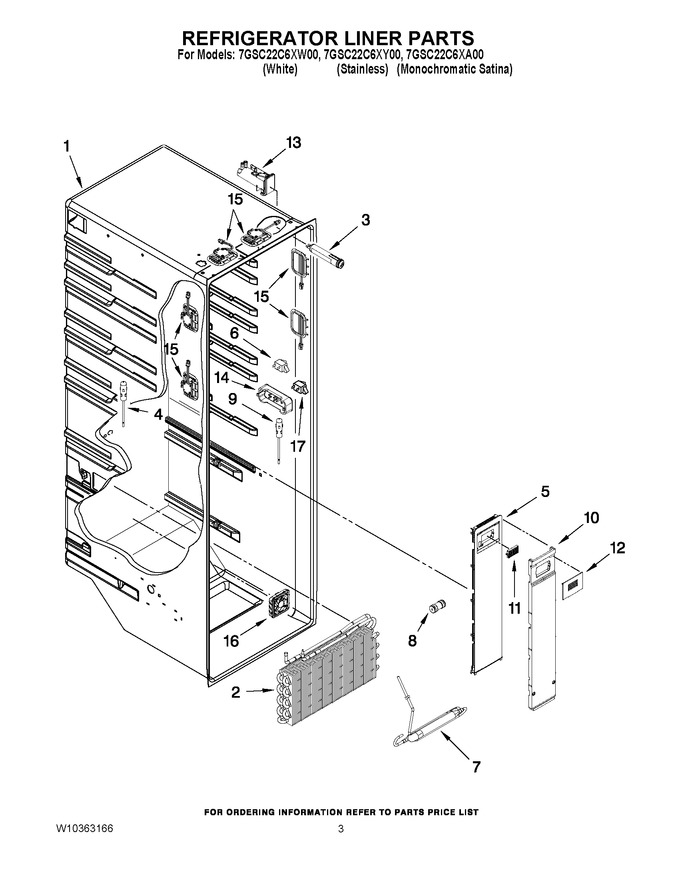

02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	WPW10643261		Evaprator, Dual   (Replaces: W10156654)			Immediately	$ 343.44
3	EDR1RXD1B		Water Filter   (Replaces: W10295370)			Immediately	$ 49.99
4	W10316760		Thermistor, Evap Fan   (Replaces: W10323459)			Immediately	$ 72.91
5	W10319881		Cover, Air Tower		Appelez-nous	-
6	W11384469		Upper Switch, Rocker Arm   (Replaces: C3680314)			Immediately	$ 39.09
7	W11204869		Reservoir   (Replaces: W10279843)				$ 167.67
8	WP2300868		Connector   (Replaces: W10271541)			Immediately	$ 29.05
9	W11724692		Thermistor   (Replaces: W10280385)			Immediately	$ 33.60
10	W10316746		Tower, Air		Appelez-nous	-
11	W10311524		Air Filter   (Replaces: W10315189)			Immediately	$ 14.34
12	W10296151		Air Filter Cover		Appelez-nous	-
13	WPW10238123		Housing, Water Filter   (Replaces: W10238123)				$ 239.81
14	WPW10425252		Cover, Thermistor   (Replaces: W10251510)			Immediately	$ 88.38
15	W11683241		Led Light Assy   (Replaces: W10279030)			Immediately	$ 271.97
16	WPW10439624		Fan Assy, Evap   (Replaces: W10260460)			Immediately	$ 338.17
17	W11123943		Lower Switch, Rocker Arm   (Replaces: 2149954)				$ 36.66

    View Diagram in Separate Window       Print Part List
