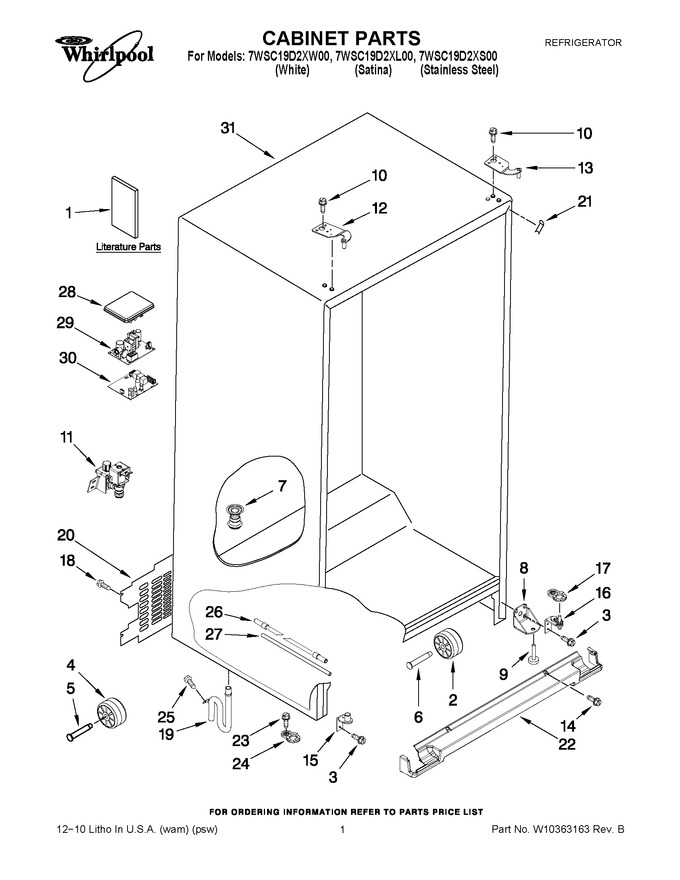

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10327259		Energy Label		Appelez-nous	-
1	W10325348		Use & Care Guide		Appelez-nous	-
1	W10328257		Service & Wiring Sheet		Appelez-nous	-
2	WPW10475495		Front Roller   (Replaces: 2150304)			Immediately	$ 32.06
3	WPW10297485		Screw   (Replaces: W10297485)				$ 8.40
4	12477102		Roller (rear)			Immediately	$ 7.38
5	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.90
6	WPW10285005		Rivet, Roller   (Replaces: W10285005)				$ 16.77
7	W10247979		Drain Fitting				$ 67.82
8	W11266052		Bracket, Foot   (Replaces: W10257186)				$ 66.31
9	WPW10141622		Foot, Brake   (Replaces: W10141622)			Immediately	$ 8.24
10	WPW10308751		Screw, Hinge (black)   (Replaces: W10308751)				$ 8.84
10	W11579735		Screw, Hinge (white)   (Replaces: W10290781)			Immediately	$ 14.73
11	WPW10279876		Valve, Inlet   (Replaces: W10279876)				$ 149.18
12	W10901052		Hinge, Top (fc) (black)   (Replaces: W10249920)				$ 76.64
12	W10901051		Hinge, Top (fc) (white)   (Replaces: W10247899)				$ 74.11
13	W11573587		Hinge, Top (rc) (white)   (Replaces: W10247901)				$ 24.93
13	W11568758		Hinge, Top (rc) (black)   (Replaces: W10249923)				$ 25.62
14	WPW10142283		Screw   (Replaces: W10142283)				$ 10.33
15	W10249941		Bottom Hinge (fc) (black)		Appelez-nous	-
15	W11293373		Bottom Hinge (fc) (white)   (Replaces: W10249940)				$ 70.77
16	W10249947		Bottom Hinge (rc) (black)		Appelez-nous	-
16	W10500000		Bottom Hinge (rc) (white)   (Replaces: W10257188)				$ 12.96
17	W10500000		Door Closer (rc) (white)   (Replaces: W10247905)				$ 12.96
17	W10500001		Door Closer (rc) (black)   (Replaces: W10257195)				$ 84.37
18	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
19	W10280082		Extesion Tube		Appelez-nous	-
20	W10257325		Cover, Unit		Appelez-nous	-
21	12587703W		Filler, Wrapper (white)				$ 22.90
21	WP12587703AP		Filler, Wrapper (apollo Grey)   (Replaces: 12587703AP)				$ 8.07
22	WPW10713158		Grille (black)   (Replaces: W10257232)				$ 98.42
22	WPW10713160		Grille (white)   (Replaces: W10257231)				$ 137.63
23	WP489483		Screw   (Replaces: W10142234)				$ 11.41
24	W10876198		Door Closer (fc) (white)   (Replaces: W10247903)				$ 12.63
24	W10770895		Door Closer (fc) (black)   (Replaces: W10257198)				$ 15.78
25	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
26	WPW10279882		Tube, Filter Inlet   (Replaces: W10277956)				$ 114.23
27	WPW10279884		Tube, Filter Outlet   (Replaces: W10277957)				$ 138.09
28	W11226688		Cover   (Replaces: 12957702)				$ 85.16
29	WPW10356039		Elec. Control-15w   (Replaces: W10120821)			Immediately	$ 377.04
30	WPW10235491		Elec. Control   (Replaces: W10235491)				$ 301.83
31	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
