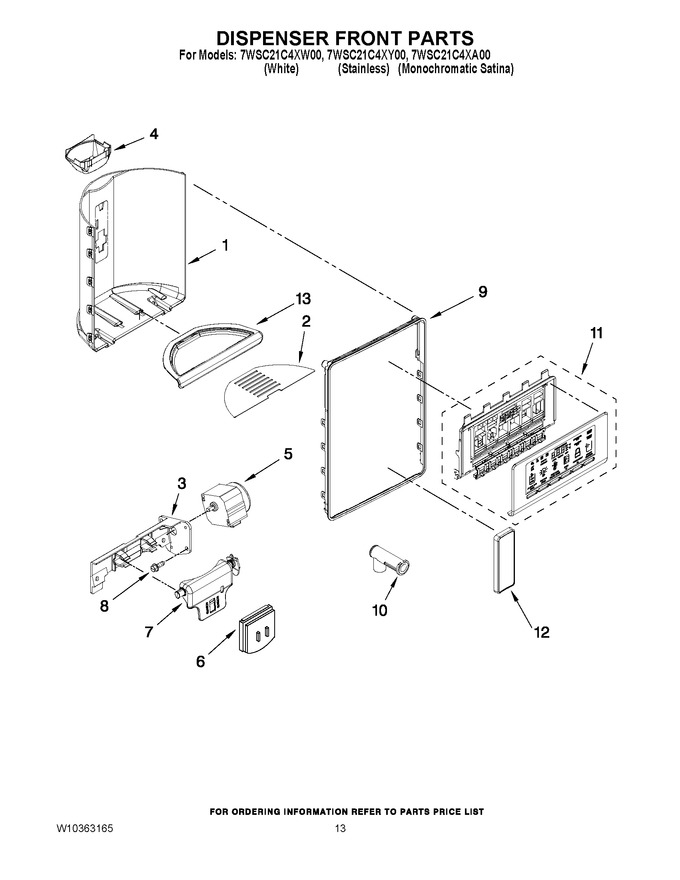

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10276197		Grate, Drip Tray   (Replaces: W10276197)				$ 75.21
3	W10174827		Bracket, Ice Door				$ 76.42
4	W10499850		Chute, Door   (Replaces: W10174808)				$ 104.67
5	WPW10205978		Motor, Ice Door   (Replaces: W10205978)				$ 104.12
6	W10346235		Door, Ice   (Replaces: W10174811)				$ 170.32
7	W10499850		Support, Ice Door   (Replaces: W10174809)				$ 104.67
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	W10254306		Trim Ring		Appelez-nous	-
10	WP2305235		Spigot   (Replaces: 2305235)				$ 147.07
11	WPW10276276		Electronic Control Assy   (Replaces: W10276276)				$ 254.06
12	WPW10370594		Pad, Ice & Water (midnight Grey)   (Replaces: W10290362)				$ 310.61
12	WPW10370593		Pad, Ice & Water (white)   (Replaces: W10290361)				$ 311.61
13	WPW10276196		Tray, Housing (satina)   (Replaces: W10276196)				$ 69.32
13	W10276193		Tray, Housing (white)		Appelez-nous	-
