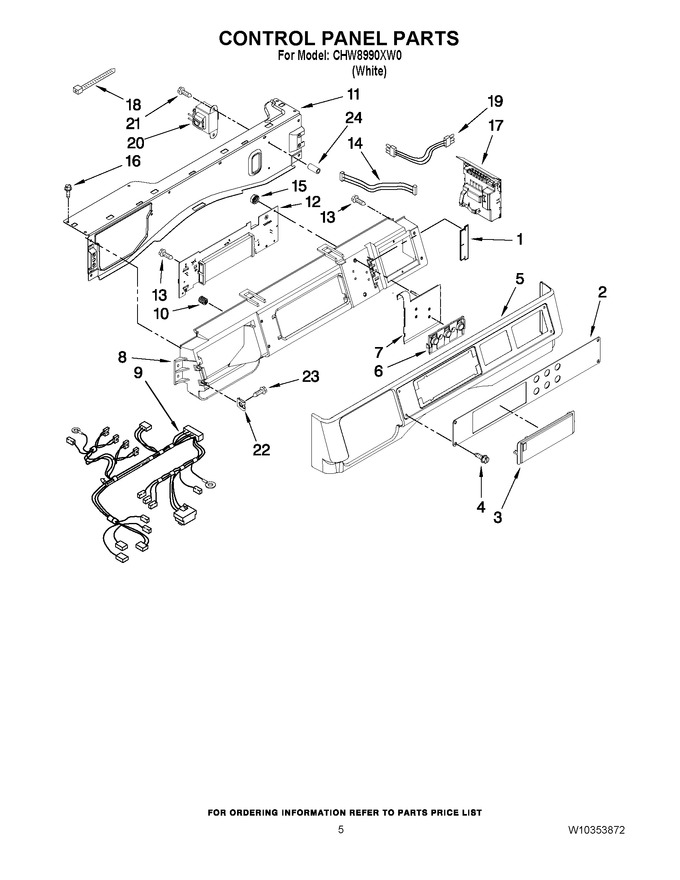

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10187276 | Seal, Console |
|
- | |||||
| 2 | W10607836 | Facia / Overlay (Replaces: W10137440) |
|
- | |||||
| 3 | W11637765 | Cover, Display (Replaces: W10267645) |
|
$ 62.63 | |||||
| 4 | WPW10137457 | Screw, 8-32 X 1/2 (Replaces: W10137457) |
|
$ 7.07 | |||||
| 5 | W10779084 | Console, Outer (Replaces: W10137458) |
|
$ 124.46 | |||||
| 6 | W10803340 | Push Button (Replaces: W10137455) |
|
$ 110.92 | |||||
| 7 | WPW10135255 | Switch, Membrane & Backer Plate (Replaces: W10135255) |
|
$ 197.47 | |||||
| 8 | W11028369 | Console, Inner (Replaces: W10137426) |
|
$ 302.72 | |||||
| 9 | W10232997 | Ccu To Hot Fill Valve (2 Pole) |
|
$ 39.56 | |||||
| 9 | W10298333 | Harness, Wiring (upper Main) Includes The Following Cable Sets: (not Illustrated) |
|
- | |||||
| 9 | W10179481 | Coin Drop To Ccu (4 Pole) |
|
- | |||||
| 9 | W10232996 | Ccu To Cold Fill Valve (3 Pole) |
|
$ 50.49 | |||||
| 10 | WPW10189313 | Insert (Replaces: W10189313) |
|
$ 8.31 | |||||
| 11 | W10294428 | Bracket, Console |
|
- | |||||
| 12 | WPW10311190 | User Interface (Replaces: W10311190) |
|
$ 517.91 | |||||
| 13 | 489136 | Screw, 3-24 X 3/8 |
|
$ 9.72 | |||||
| 14 | W10155150 | Harness, Test |
|
$ 3.02 | |||||
| 15 | WPW10139046 | Nut 6-32 (Replaces: W10139046) |
|
$ 8.31 | |||||
| 16 | WP489442 | Screw, 8-18 X 5/8 (Replaces: W10015090) |
|
Immediately | $ 10.34 | ||||
| 17 | WPW10732327 | Microcomputer, Machine Control (Replaces: W10311060) |
|
Immediately | $ 269.42 | ||||
| 18 | WP2205813 | Cable Tie (Replaces: 3429563) |
|
$ 7.30 | |||||
| 19 | W10837604 | Harness, Wiring (console Uic) (Replaces: W10299342) |
|
- | |||||
| 20 | WPW10131839 | Transformer 120 To 22.5 Vac (Replaces: W10131839) |
|
$ 126.21 | |||||
| 21 | 8540329 | Screw, 8-18 X 7/16 |
|
- | |||||
| 22 | WP9781235 | Nut, U-type (Replaces: 9781235) |
|
$ 11.30 | |||||
| 23 | WPW10131119 | Screw, 8-18 X 1/2 (Replaces: W10131119) |
|
$ 6.57 | |||||
| 24 | W10018050 | Caplug |
|
- |
