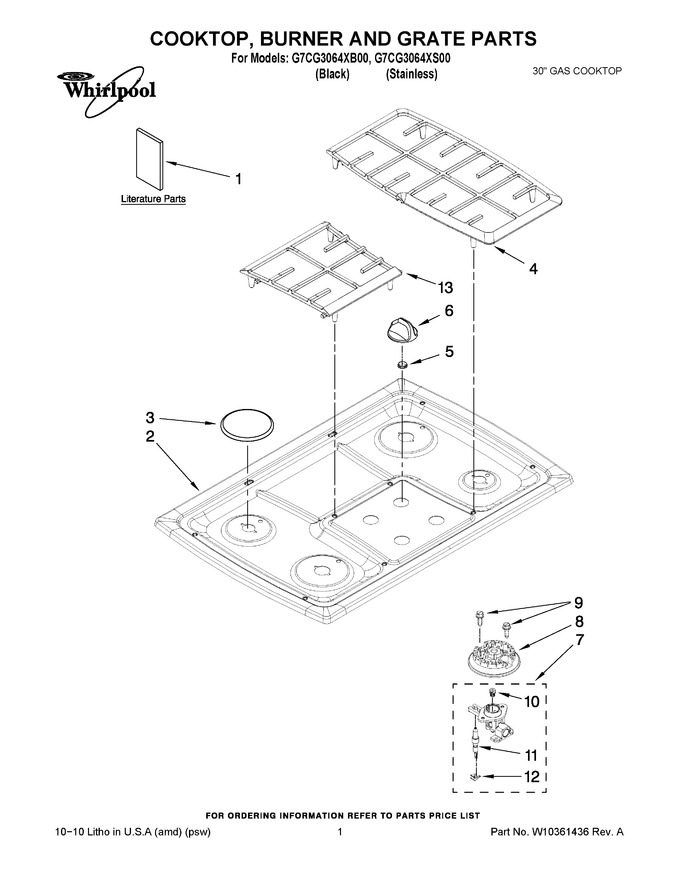

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10285002		Installation Instructions		Appelez-nous	-
1	W10344644		Use & Care Guide		Appelez-nous	-
1	W10292747		Instructions, Lp Conversion		Appelez-nous	-
1	9762761		Safe Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safe Cooking Tips (french)		Appelez-nous	-
2	W10268481		Cooktop (black)		Appelez-nous	-
2	W10285207		Cooktop (stainless)		Appelez-nous	-
3	WPW10300347		Cap-burner   (Replaces: W10300347)			Immediately	$ 222.26
4	W10300406		Grate, Burner				$ 107.60
5	WP8286452		Grommet   (Replaces: 8286452)				$ 9.53
6	WPW10284883		Knob, Control (black)   (Replaces: W10284883)			Immediately	$ 21.53
6	WPW10284885		Knob, Control (stainless)   (Replaces: W10284885)			Immediately	$ 22.81
7	WPW10256119		Holder, Orifice (rf)   (Replaces: W10256119)				$ 95.04
7	W10256120		Holder, Orifice (lr)				$ 70.61
7	W10256123		Holder, Orifice (rr)		Appelez-nous	-
7	W10286727		Holder, Orifice (lf)				$ 288.35
8	WPW10256028		Spreader, Flame (lf,rr)   (Replaces: W10256028)			Immediately	$ 157.01
8	WPW10256025		Spreader, Flame (lr)   (Replaces: W10256025)			Immediately	$ 91.07
8	WPW10256024		Spreader, Flame (rf)   (Replaces: W10256024)				$ 91.07
9	WPW10373929		Screw, Burner Top   (Replaces: W10345316)				$ 43.65
10	W10256129		Orifice (lr)				$ 100.45
10	W10327091		Orifice (rr)		Appelez-nous	-
10	WPW10256128		Orifice (rf)   (Replaces: W10256128)				$ 100.45
10	W10340424		Orifice (lf)				$ 93.67
11	W10833887		Electrode, Burner   (Replaces: W10256047)			Immediately	$ 50.65
12	W10256046		Spring, Electrode				$ 11.56
13	W10300407		Grate, Center				$ 104.22
