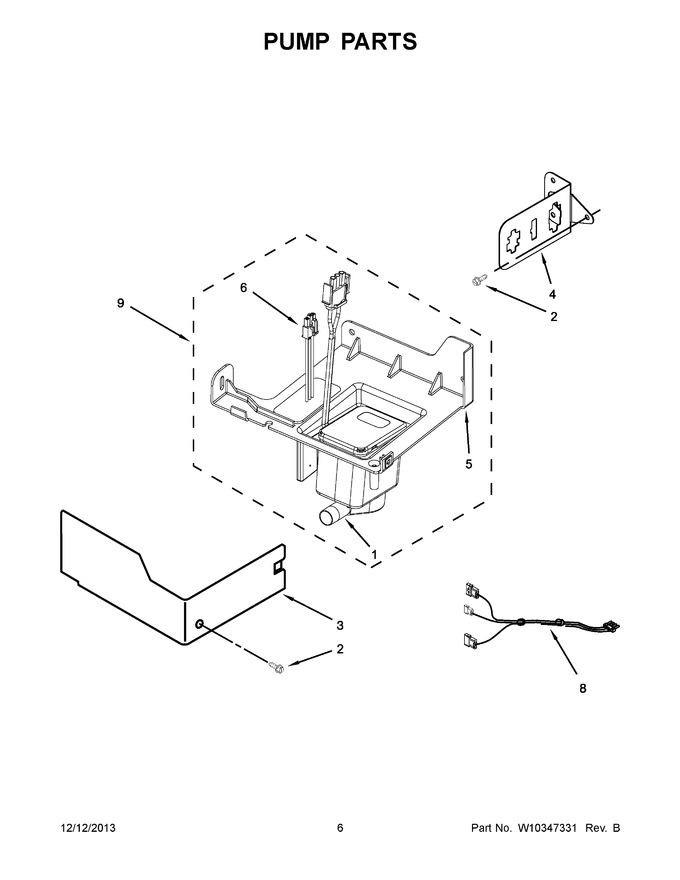

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11566405		Pump, Recirculating   (Replaces: 2313628)				$ 133.52
2	WP3400884		Screw (stainless)   (Replaces: 3400884)				$ 8.10
3	2185677		Cover, Pump				$ 94.95
4	2313844		Bracket, Connector Assembly				$ 94.74
5	W11204894		Bracket, Pump   (Replaces: 2313627)				$ 71.89
6	2313643		Sensor-motor		Appelez-nous	-
8	WP2310092		Assembly, Pump Wire   (Replaces: 2310092)				$ 165.33
9	2313702		Assembly, Pump				$ 305.04
