SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)

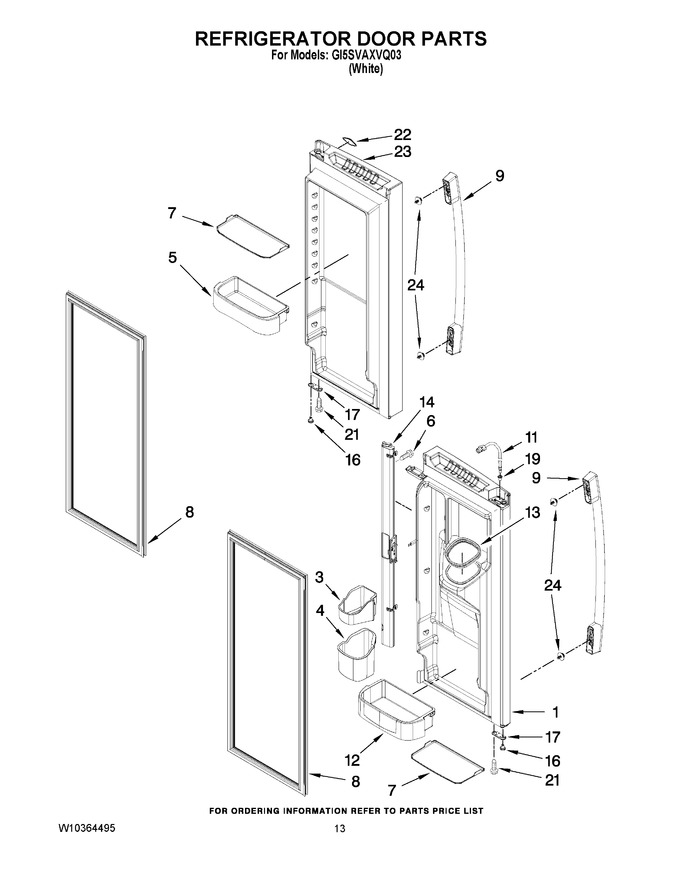

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10216831		Door, Left (white)		Appelez-nous	-
3	W10187453		Bucket, Upper   (Replaces: 12977401)				$ 73.08
4	12977501		Bucket, Lower		Appelez-nous	-
5	WPW10371194		Bucket, Medium   (Replaces: 12849106)			Immediately	$ 77.23
6	W11311945		Screw   (Replaces: 12990204)				$ 14.72
7	12567310SP		Gripper, Bucket (med.& Gallon)		Appelez-nous	-
8	W11396037		Gasket, Door (white)   (Replaces: W10163896)				$ 312.66
9	WPW10222984K		Handle, Door (white)   (Replaces: W10222984)				$ 205.46
11	W10275942		Waterline, Door			Immediately	$ 120.27
12	WPW10289489		Bucket (gallon)   (Replaces: W10289489)			Immediately	$ 88.59
13	WPW10287601		Seal, Ice Chute   (Replaces: 12665101SP)			Immediately	$ 32.76
14	12722813WKV		Mullion, Door (white)		Appelez-nous	-
16	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 8.15
17	12968202W		Stop, Door (white)				$ 69.29
19	12996601		Clip, Bushing Wire (left Door)				$ 10.05
21	WP98165		Screw   (Replaces: 12990521)				$ 8.57
22	2220214		Nameplate				$ 32.43
23	W10217379		Door, Right (white)		Appelez-nous	-
24	WP12992902		Screw, Handle (shoulder)   (Replaces: 12992902)				$ 11.91

    View Diagram in Separate Window       Print Part List
