SELECT A DIAGRAM

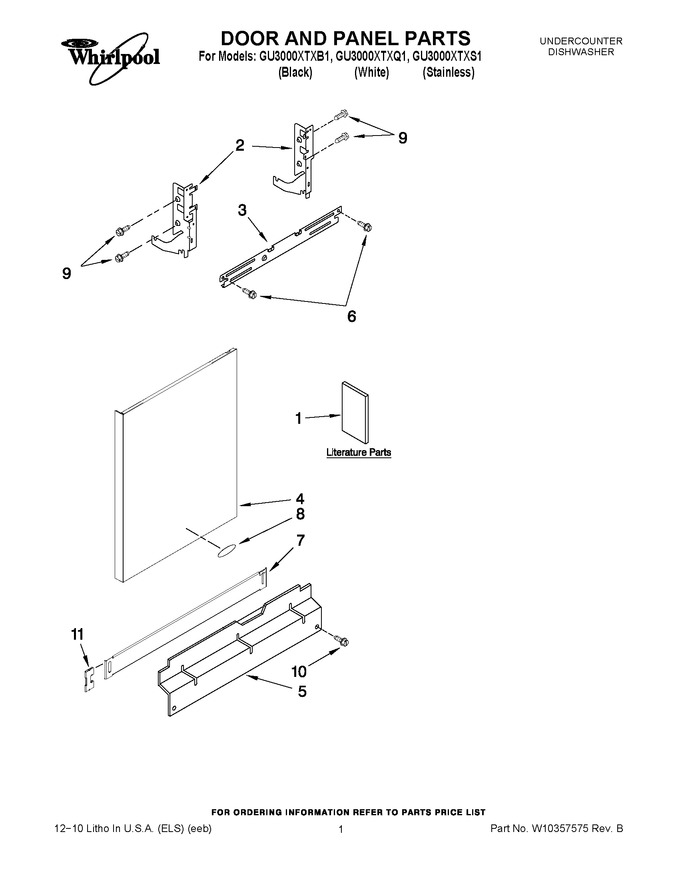

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10142908		Guide, Use & Care Spanish		Appelez-nous	-
1	W10282549		Instructions, Installation		Appelez-nous	-
1	W10142781		Guide, Use & Care English/french		Appelez-nous	-
1	W10290259		Energy Guide		Appelez-nous	-
1	W10142800		Tech Sheet		Appelez-nous	-
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
3	8268983		Stiffener, Door				$ 38.77
4	W10274958		Panel Front (stainless)				$ 155.13
4	W10274962		Panel Front (black)		Appelez-nous	-
4	W10274961		Panel Front (white)				$ 126.67
5	WPW10441007		Access Panel (white)   (Replaces: W10195778)				$ 170.94
5	W11763736		Access Panel (black)   (Replaces: W10195777)			Immediately	$ 42.25
6	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
7	W10871196		Toe Panel (black)   (Replaces: 8573286)				$ 174.04
7	WP8573287		Toe Panel (white)   (Replaces: 8573287)				$ 177.69
8	W10175320		Name Plate				$ 41.71
9	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
10	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
10	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
11	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 11.21

    View Diagram in Separate Window       Print Part List
