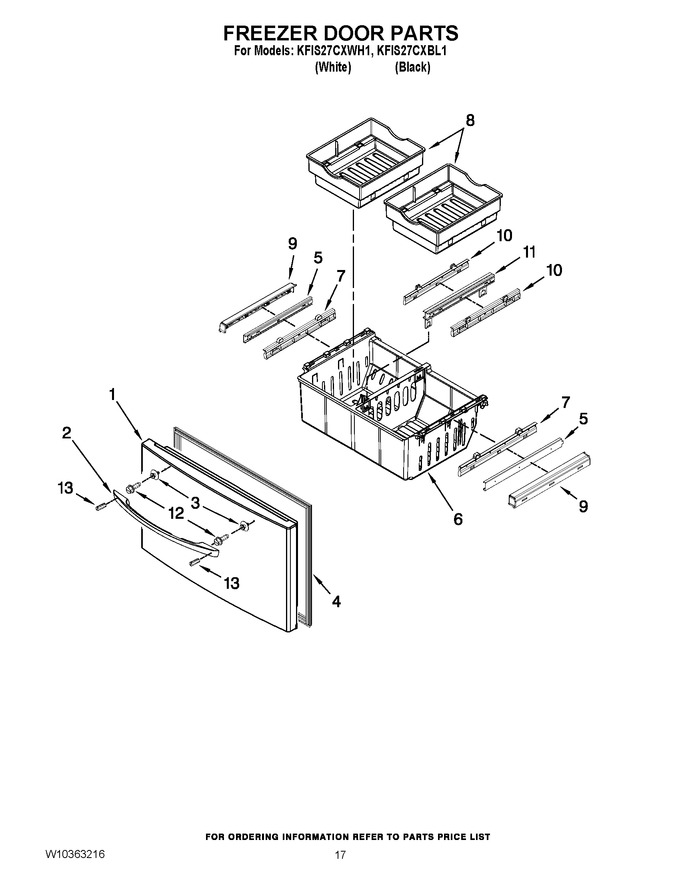

09 - Freezer Door Parts


10 - Dispenser Front Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977835B		Freezer Door (black)		Appelez-nous	-
1	12977823W		Freezer Door (white)		Appelez-nous	-
2	W10314521		Handle, Door (black)		Appelez-nous	-
2	WPW10314520K		Handle, Door (white)   (Replaces: W10314520)				$ 241.66
3	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 12.56
4	WPW10436253		Gasket, Door (black)   (Replaces: W10164044)				$ 360.89
4	WPW10443321		Gasket, Door (white)   (Replaces: W10164043)				$ 359.84
5	WPW10235367		Glide, Upper   (Replaces: W10235367)				$ 313.43
6	12924801SP		Bin, Lower		Appelez-nous	-
7	W10166742		Adapter, Bin (outer)   (Replaces: 12925403SP)				$ 98.12
8	WP12924903		Bin, Upper   (Replaces: 12924903)				$ 132.30
9	WP67006368		Retainer, Glide (right)   (Replaces: 12925502SP)				$ 192.90
9	W10826788		Retainer, Glide (left)   (Replaces: 12925501SP)				$ 57.50
10	12925404SP		Adapter, Bin (inner)				$ 45.32
11	WPW10235357		Bracket/glide Assembly   (Replaces: W10235357)			Immediately	$ 330.98
12	W10290759		Screw-handle				$ 5.83
13	WP3400203		Set Screw   (Replaces: W10287054)			Immediately	$ 5.04
