Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Liner (not A Seviceable Part) Appelez-nous -
2 2215823 Clip, Air Duct (2)   (Replaces: 842534) Special Order $ 10.94

3 W11527119 Stud Assembly   (Replaces: W10173127) Appelez-nous -
4 W10191952 Screw (4) Special Order $ 5.65

5 WP2309758 Freezer Bin   (Replaces: 2309758) In-Stock Immediately $ 130.69

6 WPW10318952 Shelf, Wire   (Replaces: W10318952) In-Stock Immediately $ 92.48

7 WPW10318953 Shelf, Wire   (Replaces: W10318953) In-Stock Immediately $ 87.76

8 W11384469 Switch, Rocker Arm   (Replaces: 1118894) In-Stock Immediately $ 39.09

9 WPW10318949 Shelf, Wire   (Replaces: W10318949) Special Order $ 77.11

10 WPW10130299 Shelf Cup   (Replaces: W10130299) In-Stock Immediately $ 14.70

11 WPW10318951 Shelf, Wire   (Replaces: W10318951) Special Order $ 85.76

12 WPW10119935 Light Socket   (Replaces: 2155597) Special Order $ 106.16

13 W11679940 Light Bulb   (Replaces: W10311505) In-Stock Immediately $ 11.30

14 WP2155595 Light Lens   (Replaces: 2155595) Special Order $ 88.36

15 2160912 Wiring Cover Appelez-nous -
16 WP489478 Screw   (Replaces: 489478) Special Order $ 8.18


    View Diagram in Separate Window     Print Icon   Print Part List

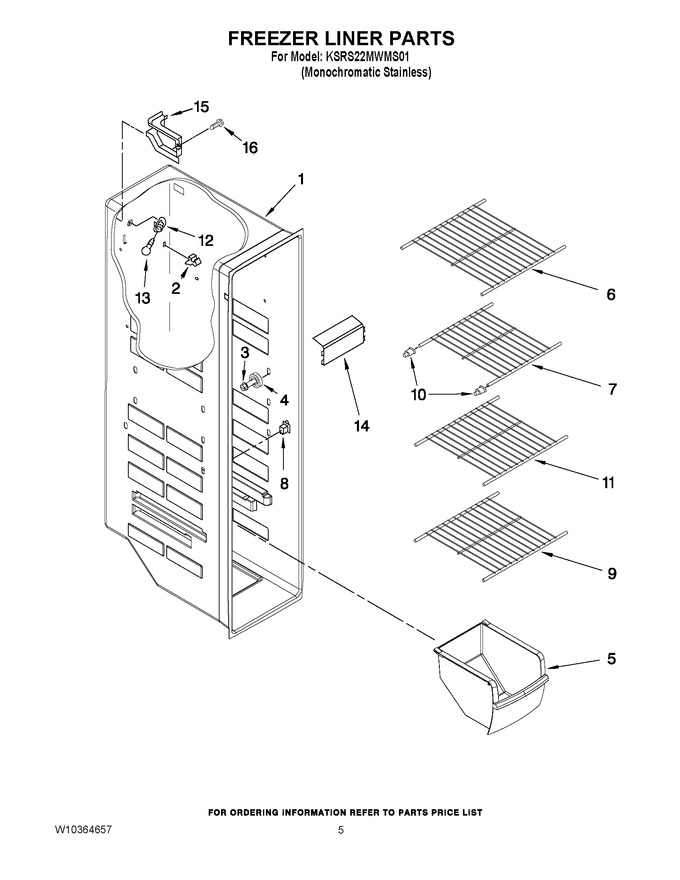

Diagram for KSRS22MWMS01
