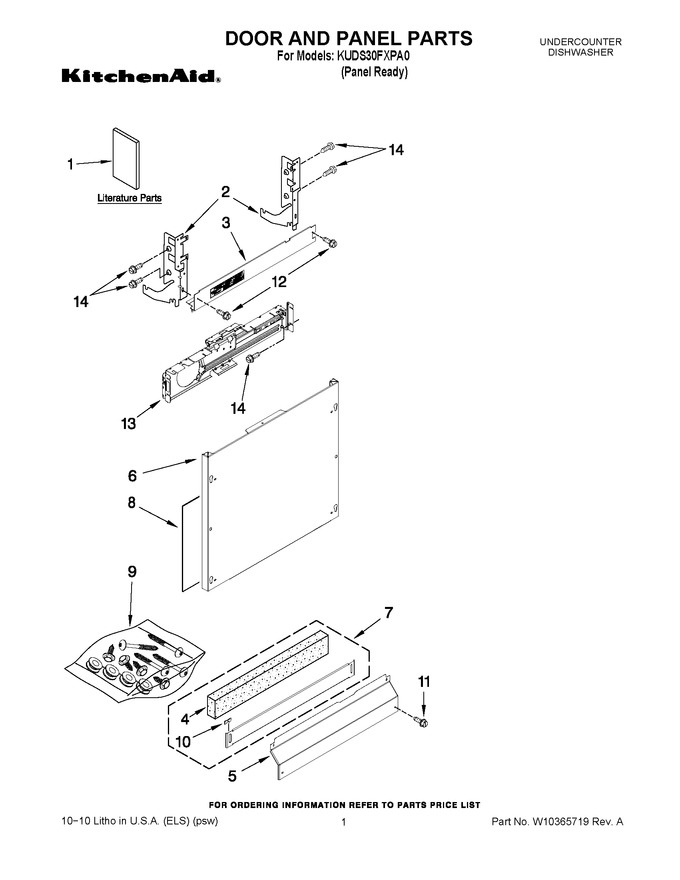

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10300928		Guide, Use & Care (english/french)		Appelez-nous	-
1	W10300598		Instructions, Installation		Appelez-nous	-
1	W10195005		Template, 6`` Custom Panel		Appelez-nous	-
1	W10300932		Energy Guide		Appelez-nous	-
1	W10300596		Guide, Use & Care (spanish)		Appelez-nous	-
1	W10195615		Tech Sheet/english		Appelez-nous	-
1	W10195616		Tech Sheet/french		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	W10850371		Vapor Barrier Assembly   (Replaces: W10321449)			Immediately	$ 32.88
4	W10831329		Insulation Toe Panel   (Replaces: 8268581)			Immediately	$ 43.30
5	W11763736		Access Panel (black)   (Replaces: W10195777)			Immediately	$ 42.25
6	W11113792		Panel, Front Panel Ready (black)   (Replaces: W10292632)			Immediately	$ 373.42
7	W10871196		Toe Panel (includes Items, 4 & 10) (black)   (Replaces: 8558252)				$ 174.04
8	W10234565		Insulation, Front Panel				$ 69.57
9	WPW10637074		Misc. Hardware   (Replaces: W10195008)			Immediately	$ 75.05
10	WP8269016		Clip, Grounding   (Replaces: 8269016)				$ 11.21
11	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
12	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
13	W11116870		Bracket, Panel Control   (Replaces: W10194911)				$ 89.95
14	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
