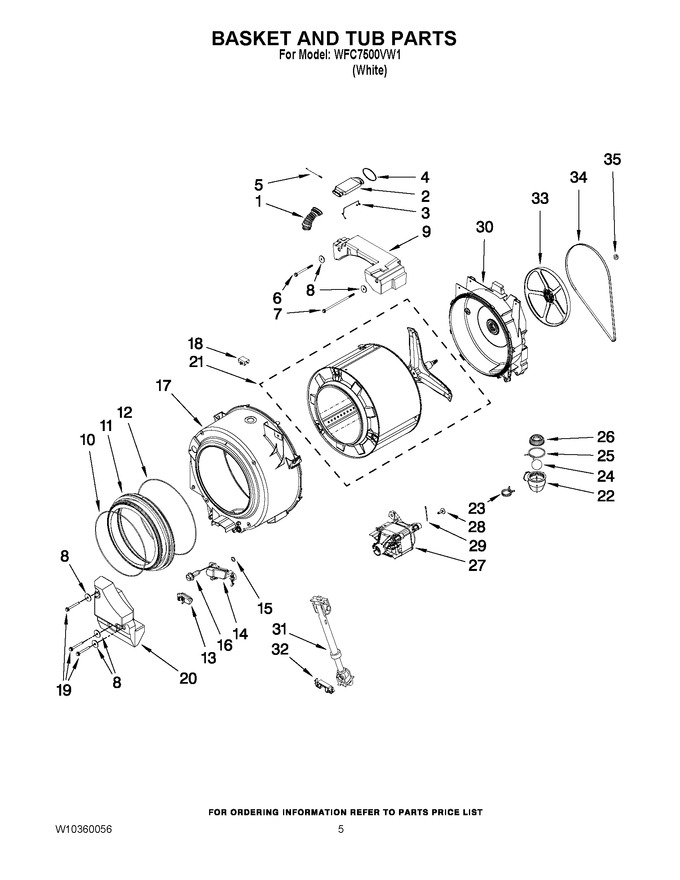

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11105131		Hose, Vent   (Replaces: W10192997)				$ 92.46
2	W10192996		Tube, Vent				$ 46.02
3	W10192999		Clamp, Tube Vent				$ 17.01
4	W10193039		Clamp, Hose				$ 20.11
5	W10193000		Spring, Tube Vent				$ 23.74
6	W10193093		Screw, Short (counterweight)				$ 12.51
7	W10193094		Screw, Long (counterweight)				$ 23.50
8	W10193096		Washer, Counterweight				$ 14.68
9	WPW10192952		Counterweight (upper)   (Replaces: W10192952)				$ 218.91
10	W10193044		Clamp-wire, Bellow (panel)				$ 29.46
11	W10193056		Bellow				$ 132.64
12	W10193090		Clamp-wire, Bellow (tub)				$ 54.72
13	W10192989		Bracket, Ntc			Immediately	$ 88.15
14	W10193047		Air-trap, Assembly				$ 45.94
15	W10192949		O-ring, Air-trap				$ 12.30
16	W10192945		Screw, Air-trap		Appelez-nous	-
17	WPW10192959		Tub-outer, Front   (Replaces: W10192959)				$ 223.24
18	WP8540092		Clamp, Tub-outer   (Replaces: W10193053)				$ 7.97
19	W10193092		Screw, Lower Counterweight				$ 12.94
20	W10192954		Counterweight (lower)				$ 221.34
21	WPW10192953		Basket, Assembly   (Replaces: W10192953)				$ 533.44
22	W11199482		Hose, Tub-to-pump   (Replaces: W10192974)				$ 31.09
23	W10192948		Clamp, Hose-pump				$ 13.26
24	W10193033		Ball, Eco				$ 13.26
25	W10193101		Clamp, Hose-to-tub				$ 11.15
26	W10193115		Nut, Eco Flange				$ 13.46
27	WPW10192987		Motor   (Replaces: W10192987)			Immediately	$ 307.81
28	W10193095		Screw, Motor				$ 14.16
29	W10192983		Tie, Wire (motor)				$ 10.91
30	WPW10192960		Tub-outer, Rear   (Replaces: W10192960)				$ 355.47
31	WPW10192964		Shock Absorber (dampner)   (Replaces: W10192964)				$ 142.29
32	W10193028		Bracket, Mount (shock)				$ 11.24
33	W10193058		Pulley				$ 190.88
34	WPW10192984		Belt, Drive   (Replaces: W10192984)			Immediately	$ 64.52
35	W10192946		Nut, Pulley				$ 13.47
