01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

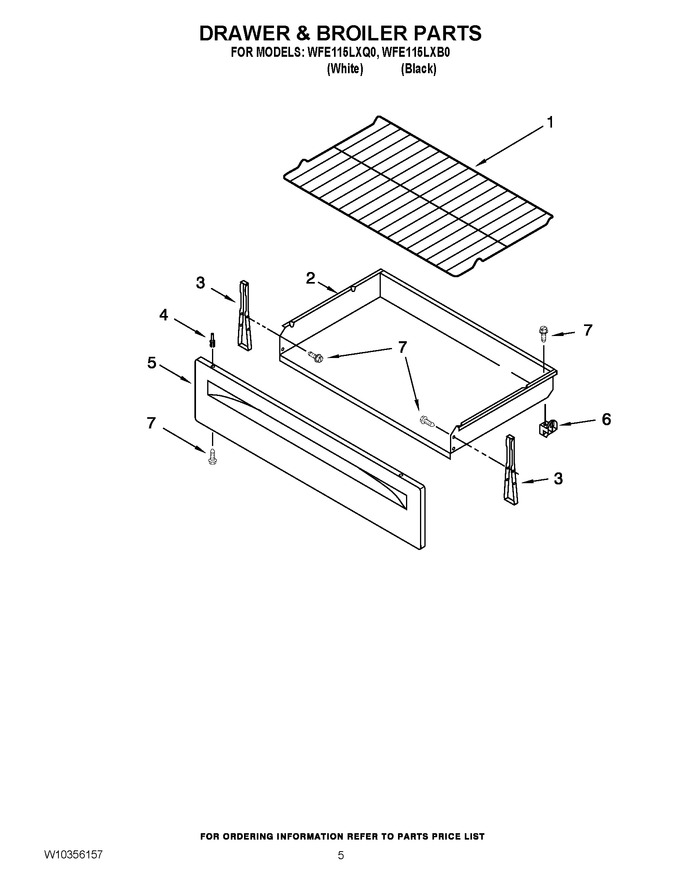

04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (Replaces: W10268578) |
|
Immediately | $ 46.84 | ||||
| 2 | 9761031 | Drawer, Storage |
|
- | |||||
| 3 | W10174397 | Bracket, Drawer |
|
$ 38.13 | |||||
| 4 | WP3196814 | Rivet, Push (white) (Replaces: 3196814) |
|
Immediately | $ 11.07 | ||||
| 5 | W11230490 | Panel, Drawer Frnt (black) (Replaces: 8053338) |
|
$ 211.59 | |||||
| 5 | W11230486 | Panel, Drawer Frnt (white) (Replaces: 8053336) |
|
$ 211.49 | |||||
| 6 | WP8053334 | Glide, Drawer (Replaces: 8053334) |
|
Immediately | $ 7.84 | ||||
| 7 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 |
