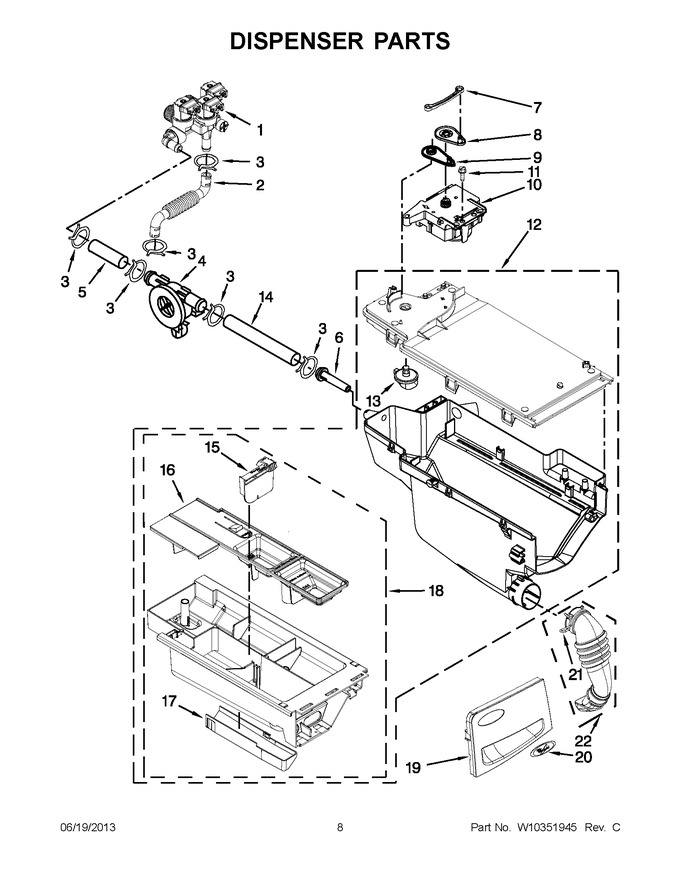

04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10247306		Valve, Inlet   (Replaces: W10247306)			Immediately	$ 167.78
2	W10239949		Hose, Inlet Valve To Active Vent				$ 45.43
3	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.82
4	WPW10110225		Flowmeter   (Replaces: 8181696)			Immediately	$ 109.03
5	W10538825		Hose, Inlet Valve To Flowmeter   (Replaces: W10239935)				$ 27.12
6	WP8183181		Nozzle, Inlet   (Replaces: 8183181)				$ 94.82
7	WP8183183		Lever, Connection   (Replaces: 8183183)				$ 94.74
8	WP8183184		Cam, Actuator   (Replaces: W10003190)				$ 94.74
9	W10183517		Lever, Water Distribution				$ 9.94
10	WPW10352973		Actuator   (Replaces: W10163975)			Immediately	$ 134.69
11	WP8540282		Screw   (Replaces: 8540282)				$ 12.14
12	W10259004		Housing, Dispenser Assembly				$ 118.06
13	WP8181712		Nozzle, Distribution   (Replaces: W10003110)				$ 93.57
14	W10538827		Hose, Flowmeter To Dispenser   (Replaces: W10239936)				$ 28.34
15	WPW10121596		Separator, With Selection Slider   (Replaces: W10015200)				$ 76.72
16	W10256661		Siphon, Bleach/softener				$ 122.79
17	W10003140		Cover, Detergent Drawer				$ 89.91
18	W10256683		Drawer, Detergent (complete)				$ 52.63
19	W10316352		Handle, Drawer (includes Badge) (red)		Appelez-nous	-
19	W10839403		Handle, Drawer (includes Badge) (white)   (Replaces: W10311728)				$ 102.52
19	W10327027		Handle, Drawer (includes Badge) (silver)				$ 45.38
20	W10117943		Badge, Whirlpool		Appelez-nous	-
21	W10239910		Clamp, Hose			Immediately	$ 65.30
22	WPW10239966		Hose, Dispenser To Bellow   (Replaces: W10239966)				$ 87.10
