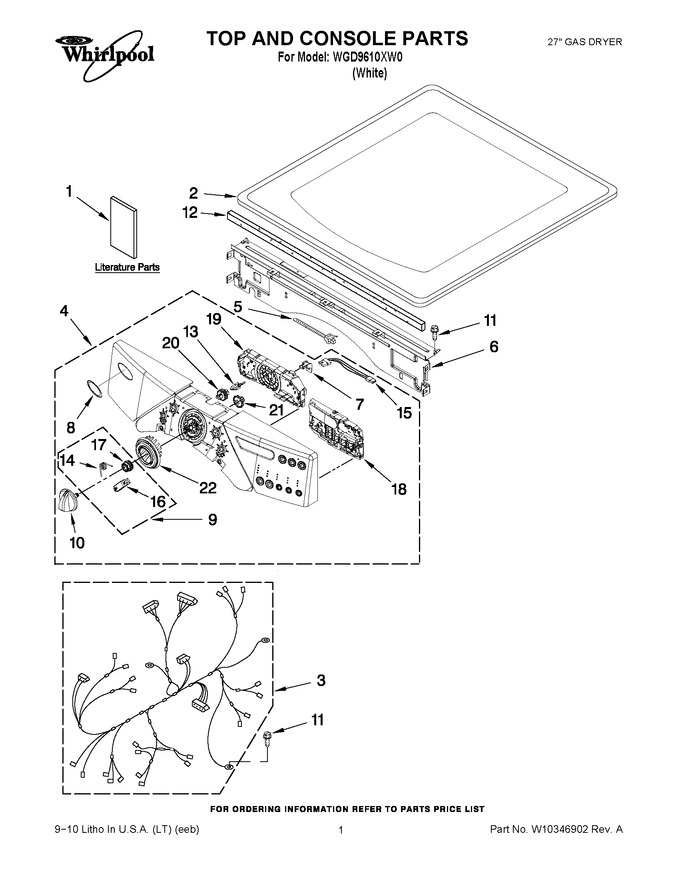

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10293911 Burner Assembly
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10255469 | Installation Instructions |
|
- | |||||
| 1 | W10244607 | Use & Care Guide |
|
- | |||||
| 1 | W10298850 | Tech Sheet |
|
- | |||||
| 2 | 3980634 | Top |
|
- | |||||
| 3 | W10111069 | Harness, Main |
|
$ 273.58 | |||||
| 4 | W10255229 | Panel, Console |
|
$ 393.71 | |||||
| 5 | WP3391018 | Tie Cable (Replaces: 3391018) |
|
$ 33.43 | |||||
| 6 | W10215656 | Bracket, Console (includes Item 12) |
|
$ 72.06 | |||||
| 7 | W10112268 | Clip-harness (4) |
|
- | |||||
| 8 | W10117943 | Badge |
|
- | |||||
| 9 | W10012480 | Encoder, Wheel Kit (includes Items, 14, 16 & 24 ) |
|
$ 17.15 | |||||
| 10 | W10190685 | Knob, Control (include Item, 21. ) |
|
$ 68.80 | |||||
| 11 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | W10112267 | Foam-seal |
|
$ 97.53 | |||||
| 13 | W10012480 | Array-power (Replaces: W10030070) |
|
$ 17.15 | |||||
| 14 | W10012820 | Knob, Spring (service Only With Item. 9 ) |
|
- | |||||
| 15 | W10242906 | Harness, Communication |
|
$ 170.16 | |||||
| 16 | W10012810 | Rast, Wheel Assembly (service Only With Item. 9 ) |
|
- | |||||
| 17 | W10236765 | Detent Wheel (service Only With Item. 9 ) |
|
- | |||||
| 18 | W10279773 | User Interface (right) |
|
$ 262.92 | |||||
| 19 | W10279709 | User-interface Center (includes Item 13) |
|
$ 232.06 | |||||
| 20 | W10012430 | Encoder-wheel |
|
$ 21.85 | |||||
| 21 | W10012440 | Retainer-snap |
|
$ 12.36 | |||||
| 22 | W10250089 | Knob, Light Ring (includes: Illus. 21) |
|
$ 13.46 |
