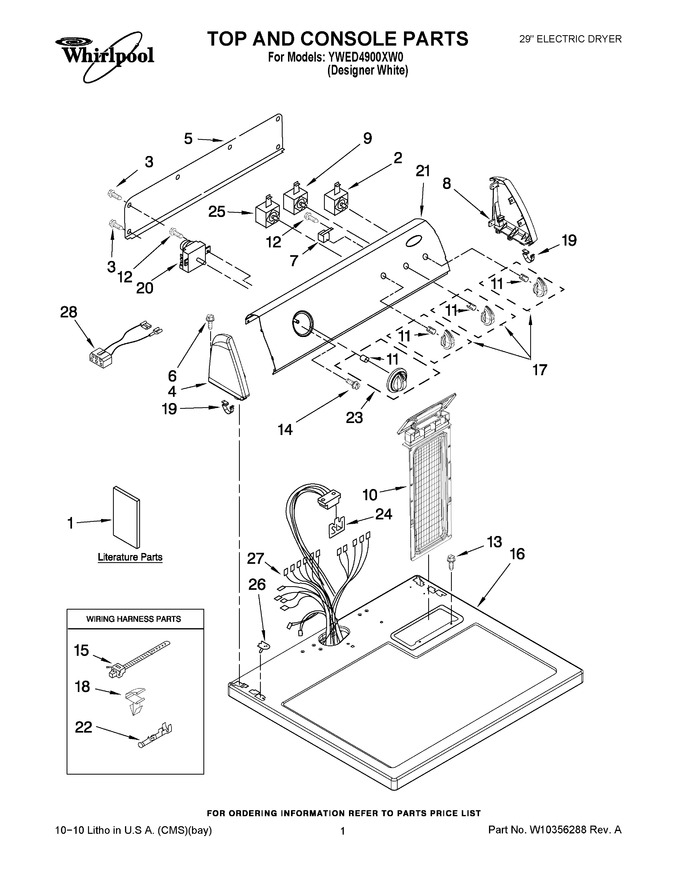

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10096986 | Guide, Use & Care |
|
- | |||||
| 1 | W10118081 | Wiring Diagram |
|
- | |||||
| 1 | W10096984 | Installation, Instruction |
|
- | |||||
| 2 | WPW10117655 | Switch, Push-to-start (Replaces: W10117655) |
|
Immediately | $ 77.04 | ||||
| 3 | WP693995 | Switch, (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | WP8565957 | Push-to-start (Replaces: 8566035) |
|
$ 58.28 | |||||
| 5 | W10103406 | Panel, Rear Console |
|
$ 121.78 | |||||
| 6 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.36 | |||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 120.65 | |||||
| 8 | WP8565954 | Cap, End (r.h.) (Replaces: 8566032) |
|
$ 59.26 | |||||
| 9 | WP3405156 | Switch, Wrinkle Shield (Replaces: 3405156) |
|
$ 137.51 | |||||
| 10 | W11778253 | Screen, Lint (Replaces: 8557857) |
|
Immediately | $ 49.17 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 12 | WP90767 | Screw, 8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 12.49 | |||||
| 15 | WP3391018 | Cable, Tie (Replaces: 3391018) |
|
$ 30.09 | |||||
| 16 | WP8563663 | Top (Replaces: 8559800) |
|
Immediately | $ 314.33 | ||||
| 17 | W10034380 | Knob, Control |
|
$ 25.06 | |||||
| 18 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 19 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 20 | WP8566184 | Timer, 60 Hz. (Replaces: 8566184) |
|
Immediately | $ 263.09 | ||||
| 21 | WPW10295263 | Console Panel & Bracket Assembly (Replaces: W10295263) |
|
$ 328.47 | |||||
| 22 | WP94614 | Terminal (Replaces: 94614) |
|
$ 7.25 | |||||
| 23 | W10034750 | Timer Knob Assembly |
|
$ 28.27 | |||||
| 24 | WPW10476828 | C-version Control (Replaces: 8558178) |
|
Immediately | $ 296.94 | ||||
| 25 | WP8578354 | Switch, Temperature (Replaces: 8578354) |
|
Immediately | $ 229.00 | ||||
| 26 | WP357213 | Nut,push-in (Replaces: 357213) |
|
$ 6.98 | |||||
| 27 | W10111401 | Harness, Wiring |
|
$ 54.10 | |||||
| 28 | W10113080 | Wire, Jumper (buzzer On/off) |
|
- |
