SELECT A DIAGRAM

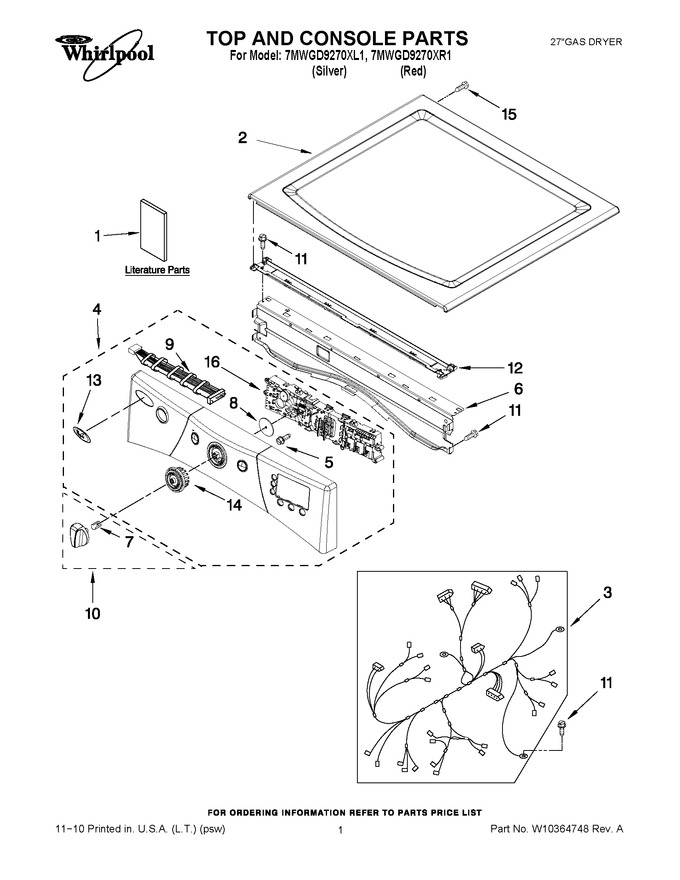

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10293911 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10339519		Use & Care Guide		Appelez-nous	-
1	W10294025		Tech Sheet		Appelez-nous	-
2	WPW10336091		Top (silver)   (Replaces: W10336091)				$ 324.93
2	W10336090		Top (red)				$ 121.81
3	W10278758		Harness, Main		Appelez-nous	-
4	WPW10215463		Panel, Console (red)   (Replaces: W10329852)				$ 358.85
4	W10329851		Panel, Console (silver)		Appelez-nous	-
5	W10006580		Screw		Appelez-nous	-
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 189.77
7	W10153920		Spring, Knob		Appelez-nous	-
8	8572039		Seal, User Interface		Appelez-nous	-
9	W10259049		Cable, User Interface				$ 170.48
10	WPW10247262		Knob   (Replaces: W10247262)				$ 56.36
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
12	WPW10266747		Channel, Water   (Replaces: W10266747)				$ 73.96
13	W10117943		Badge Assembly		Appelez-nous	-
14	W10237301		Cycle, Light Guide		Appelez-nous	-
15	3400238		Screw, 2-28 X 1/2				$ 12.03
16	WPW10215475		Assembly, User Interface   (Replaces: W10215475)				$ 242.51

    View Diagram in Separate Window       Print Part List
