01 - Top And Cabinet Parts

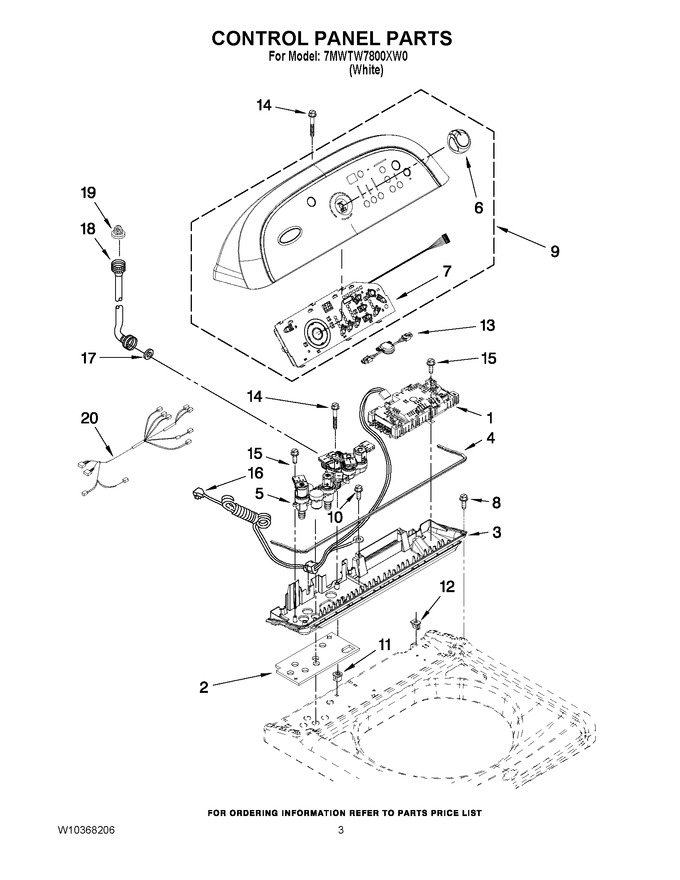

02 - Control Panel Parts
03 - Motor, Basket And Tub Parts
04 - Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10384471 | Control Unit Assembly, Machine & Motor (Replaces: W10299401) |
|
$ 341.74 | |||||
| 2 | W10130502 | Gasket, Valve Tray |
|
$ 19.43 | |||||
| 3 | 8578550 | Tray Assembly, Console (includes Items 2 & 4) |
|
$ 45.19 | |||||
| 4 | 8546616 | Gasket, Console/tray |
|
$ 60.11 | |||||
| 5 | W10853723 | Valve, Log Assembly (Replaces: W10326915) |
|
Immediately | $ 121.66 | ||||
| 6 | WPW10211335 | Knob, Control (Replaces: W10211335) |
|
$ 59.76 | |||||
| 7 | W10297399 | User Interface |
|
$ 291.96 | |||||
| 8 | WPW10052600 | Screw, 8-18 X 3/4 (Replaces: W10052600) |
|
$ 7.30 | |||||
| 9 | W10211348 | Console |
|
$ 348.89 | |||||
| 10 | WP3351614 | Screw, Power Cord Ground (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 11 | 98460 | Nut, Push-in (2) |
|
$ 12.07 | |||||
| 12 | W10022060 | Nut, Push-in (3) |
|
- | |||||
| 13 | W10307472 | Harness, Led Mov |
|
$ 52.66 | |||||
| 14 | 8565324 | Screw, 10-16 X 1.75 |
|
$ 14.05 | |||||
| 15 | WP8281136 | Screw, 8-18 X 3/4 (Replaces: 8281136) |
|
$ 7.30 | |||||
| 16 | 3407203 | Cord Assembly, Power |
|
$ 59.22 | |||||
| 17 | WP16123 | Washer, Water Inlet Hose (1-1/16 X 5/8) (Replaces: W10242307) |
|
$ 8.16 | |||||
| 18 | WP89503 | Hose, Water Inlet (cold Water) (Replaces: W10194208) |
|
Immediately | $ 24.09 | ||||
| 18 | WP89503 | Hose, Water Inlet (hot Water) (Replaces: 8571378) |
|
Immediately | $ 24.09 | ||||
| 19 | 285452A | Washer, Filter (Replaces: 353362) |
|
Immediately | $ 9.69 | ||||
| 20 | WPW10328040 | Harness, Log Valve (Replaces: W10328040) |
|
$ 262.46 |
