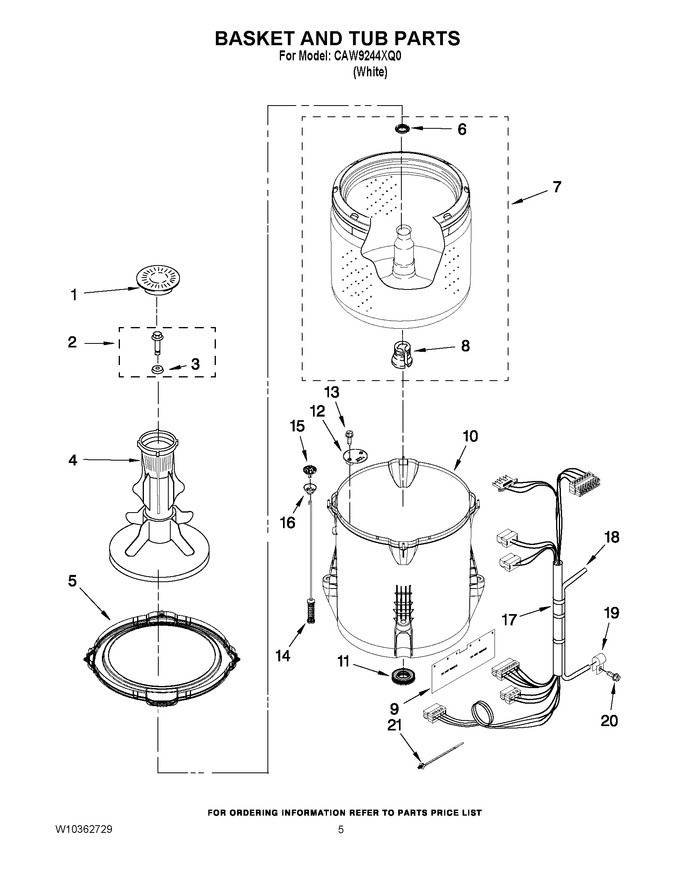

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3352483		Cap, Agitator   (Replaces: 3352483)				$ 62.15
2	W10772621		Screw & Washer Assembly   (Replaces: W10003790)			Immediately	$ 5.24
3	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 11.09
4	WPW10131112		Agitator   (Replaces: 63377)			Immediately	$ 124.13
5	WPW10215107		Ring-tub   (Replaces: W10215107)			Immediately	$ 154.15
6	WP21366		Nut, Spanner   (Replaces: 21366)			Immediately	$ 11.56
7	W10738339		Basket Assembly   (Replaces: W10270364)				$ 279.14
8	WP389140		Block, Basket Drive   (Replaces: 389140)			Immediately	$ 27.49
9	W10339098		Shield, Splash				$ 25.85
10	W10371566		Tub (includes Item 11)   (Replaces: W10238320)				$ 356.34
11	W10324647		Seal, Tub   (Replaces: W10006371)			Immediately	$ 93.50
12	WPW10215093		Filter, Drain Pump   (Replaces: W10215093)				$ 65.26
13	WP8533928		Screw, 8-18 X 3/4   (Replaces: 8533928)			Immediately	$ 8.26
14	W10780048		Damper Assembly, Tub Suspension (set Of 4-includes Items 15 & 16)   (Replaces: W10257088)			Immediately	$ 88.83
15	W10215136		Ball, Suspension (set Of 4 - Includes Item 16)		Appelez-nous	-
16	W10256551		Bushing, Suspension (set Of 4 - Includes Item 15)		Appelez-nous	-
17	W10276648		Harness, Lower (includes Items 18 & 21)		Appelez-nous	-
18	WP353244		Hose, Pressure Switch   (Replaces: W10297436)			Immediately	$ 59.93
19	W10005430		Clamp, Pressure Hose Retainer			Immediately	$ 9.53
20	WPW10109200		Screw, 10-16 X 3/4   (Replaces: 8533943)			Immediately	$ 8.80
21	WPW10298887		Cable Tie   (Replaces: W10298887)				$ 7.98
