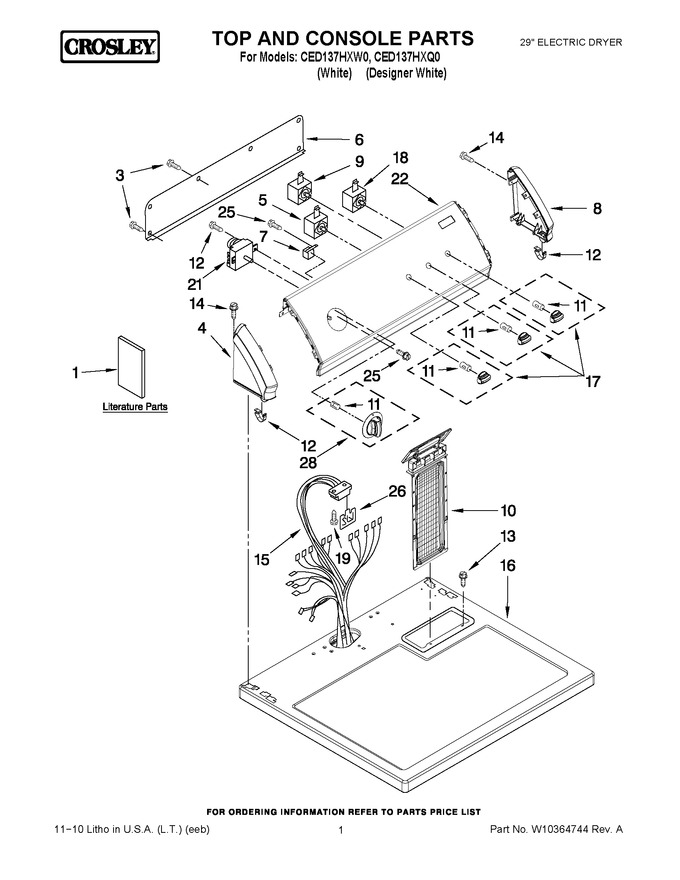

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10096992		Use & Care Guide		Appelez-nous	-
1	8578889		Wiring Diagram		Appelez-nous	-
1	W10096987		Instruction Installation		Appelez-nous	-
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
4	WP8559502		Cap, End (l.h.)   (Replaces: 8559502)				$ 69.51
5	WP3405156		Wrinkle Shield, Switch   (Replaces: 3405156)				$ 145.51
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
8	WP8559501		Cap, End (r.h.)   (Replaces: 8559501)				$ 69.30
9	WP8578354		Switch, Temperature   (Replaces: 8578354)			Immediately	$ 173.03
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 52.03
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.81
12	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	W10915367		Screw. Mounting (8-18 X 5/16)   (Replaces: 3400808)		Appelez-nous	-
15	W10071280		Harness, Wiring   (Replaces: 8576544)		Appelez-nous	-
16	WP8563663		Top   (Replaces: 8559800)			Immediately	$ 332.62
17	W10317458		Knob, Control		Appelez-nous	-
18	WPW10117655		Switch, Push-to-start   (Replaces: W10117655)			Immediately	$ 85.60
19	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
21	WP8566184		Timer, 60 Hz.   (Replaces: 8566184)			Immediately	$ 277.09
22	W10115485		Control Panel & Bracket Assembly		Appelez-nous	-
25	WP90767		Screw, 8-18 X 5/16   (Replaces: 3348629)			Immediately	$ 7.82
26	WPW10476828		Control, Electronic   (Replaces: 8558178)			Immediately	$ 314.22
28	W10317457		Timer Knob Assembly		Appelez-nous	-
