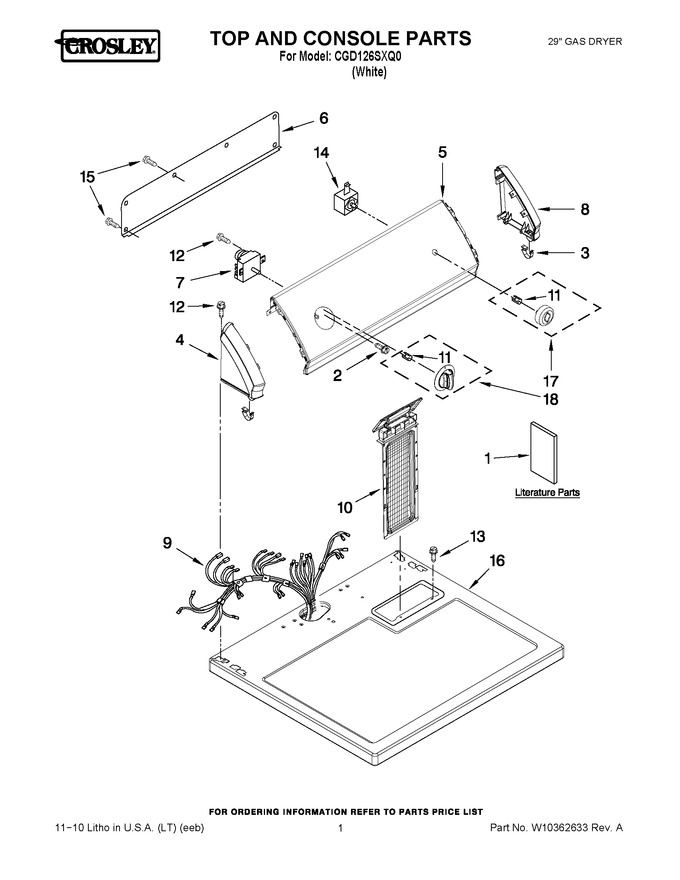

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318272 Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10096984 | Installation (instructions) |
|
- | |||||
| 1 | W10348336 | Wiring Diagram |
|
- | |||||
| 1 | W10096992 | Use & Care Guide |
|
- | |||||
| 2 | W10850756 | Screw, Grounding (Replaces: 8533974) |
|
$ 8.20 | |||||
| 3 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 4 | WP8559502 | Cap, End (l.h.) (Replaces: 8559502) |
|
$ 72.99 | |||||
| 5 | W10115483 | Panel Console & Bracket Assembly |
|
- | |||||
| 6 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 7 | WP3977678 | Timer (60 Hz.) (Replaces: 3977678) |
|
$ 332.54 | |||||
| 8 | WP8559501 | Cap, End (r.h.) (Replaces: 8559501) |
|
$ 72.77 | |||||
| 9 | 8299877 | Harness, Wiring |
|
- | |||||
| 10 | W10874409 | Screen, Lint (Replaces: 8557861) |
|
Immediately | $ 67.01 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WP90767 | Screw, 8-18 X 5/16 (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 13 | 688923 | Screw, 8-18 X 5/8 |
|
- | |||||
| 14 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 26.66 | ||||
| 15 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 16 | WP8563663 | Top (Replaces: 8559800) |
|
Immediately | $ 349.25 | ||||
| 17 | W10317459 | Knob, Push-to-start |
|
- | |||||
| 18 | W10317457 | Knob, Timer Assembly |
|
- |
