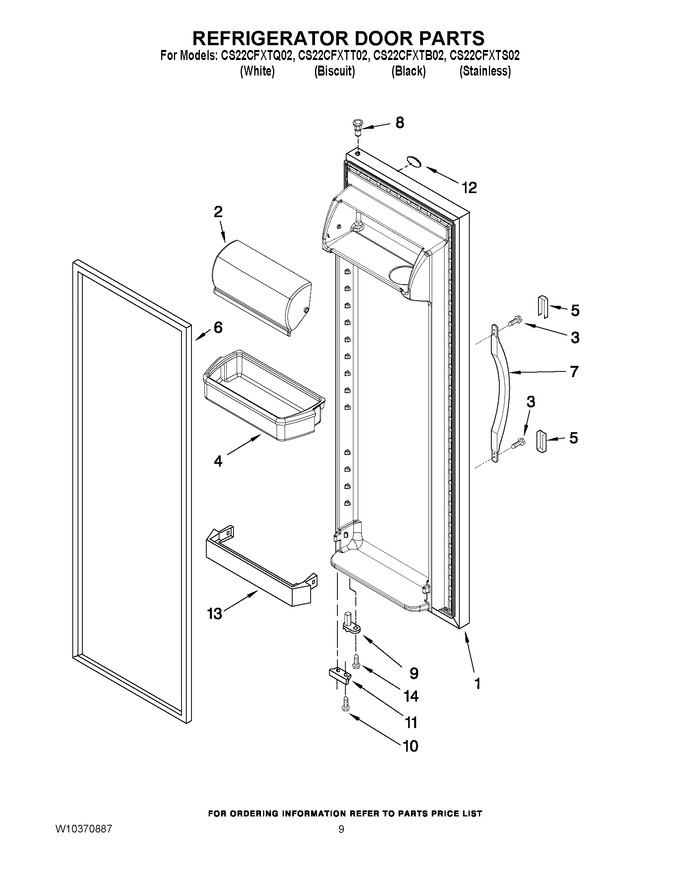

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309622W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	L2206826T		Refrigerator Door (includes Item 6) (biscuit)   (Replaces: 2309622T)		Appelez-nous	-
1	2309622B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	2323861S		Refrigerator Door (includes Item 6) (stainless)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
3	WP489491		Screw   (Replaces: 489491)				$ 6.95
4	WP2187172		Door Bin (3)   (Replaces: 2187172)			Immediately	$ 45.09
5	2194272T		Trim, Handle (biscuit)				$ 6.64
5	WP2194272B		Trim, Handle (black)   (Replaces: 2194272B)				$ 6.95
5	2194272W		Trim, Handle (white)				$ 5.85
6	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309600)				$ 317.32
6	2159081		Door Gasket, Magnetic (black)   (Replaces: 2309653)				$ 319.60
7	W10285540		Handle (black)				$ 71.85
7	W10285541		Handle (biscuit)				$ 68.60
7	W10285542		Handle (white)				$ 71.46
8	WP2182181		Thimble-top   (Replaces: 2308091)				$ 7.76
9	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
10	WP489483		Screw   (Replaces: 489420)				$ 10.87
11	W10185571		Bracket, Door Stop (black)		Appelez-nous	-
11	W10185570		Bracket, Door Stop (silver)				$ 11.59
12	8578344		Nameplate		Appelez-nous	-
13	WP2309941		Trivet, Shelf   (Replaces: 2309941)			Immediately	$ 76.32
14	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
