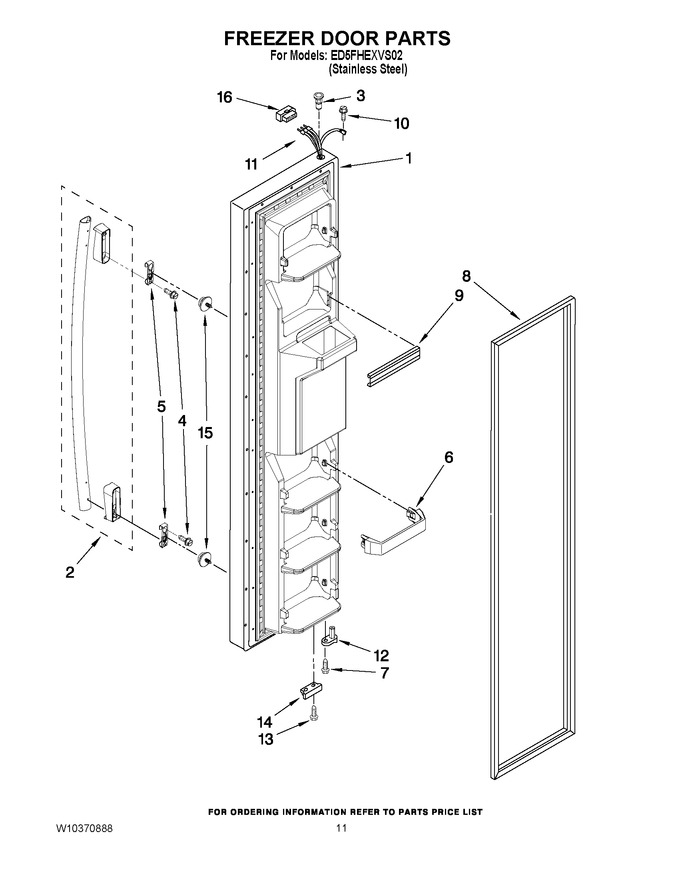

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10271963 | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless) |
|
- | |||||
| 2 | WPW10257120 | Handle (Replaces: W10257120) |
|
$ 59.70 | |||||
| 3 | WP2182181 | Thimble, Top (Replaces: 2182181) |
|
$ 8.15 | |||||
| 4 | W10267047 | Screw (Replaces: W10201588) |
|
$ 13.47 | |||||
| 5 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 36.55 | |||||
| 6 | WP2309718 | Trivet (4) (Replaces: 2309718) |
|
$ 61.49 | |||||
| 7 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 8 | 2159082 | Door Gasket, Magnetic (Replaces: 2309533) |
|
$ 332.49 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: W10307490) |
|
Immediately | $ 24.27 | ||||
| 10 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 11 | 2311641 | Wire Harness |
|
- | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 14 | W10185567 | Bracket, Door Stop |
|
- | |||||
| 15 | WPW10288153 | Screw (Replaces: W10129563) |
|
Immediately | $ 9.65 | ||||
| 16 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 24.83 |
