SELECT A DIAGRAM

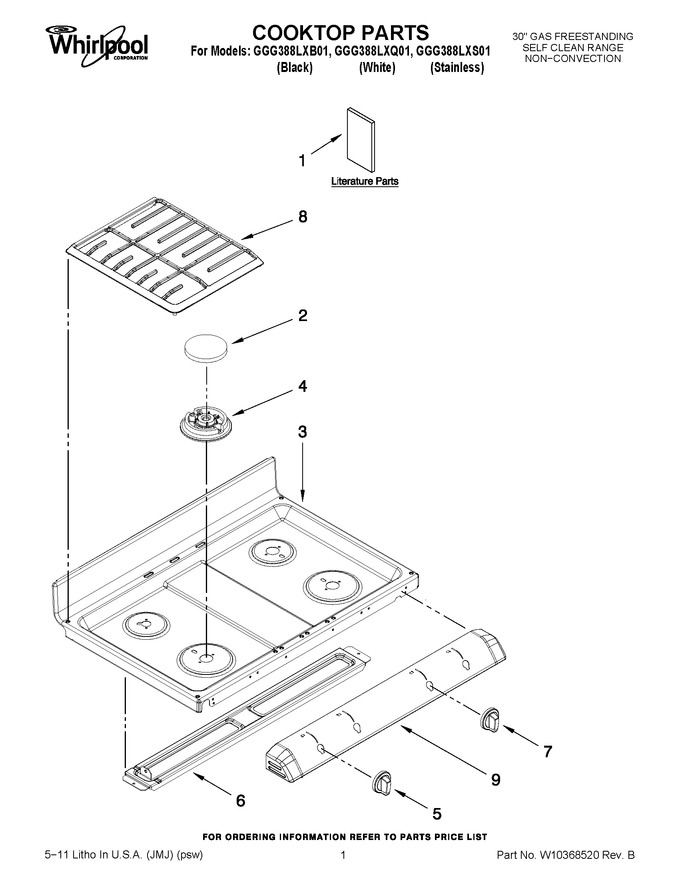

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Rack And Element Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10291447		Instructions, Installation		Appelez-nous	-
1	W10065852		Brochure, Tips Safe Cooking (french)		Appelez-nous	-
1	W10291451		Owners Manual		Appelez-nous	-
1	W10311748		Tech Sheet		Appelez-nous	-
1	9762761		Brochure, Tips Safe Cooking (english)		Appelez-nous	-
2	WPW10244448		Kit, Burner Cap (gray)   (Replaces: W10244448)				$ 231.06
2	WPW10244447		Kit, Burner Cap (black)   (Replaces: W10244447)				$ 200.90
3	W10336322		Cooktop (white)   (Replaces: W10204726)		Appelez-nous	-
3	W10204725		Cooktop (black)		Appelez-nous	-
4	WPW10406797		Burners (right Rear & Front (12k))   (Replaces: 8286182)				$ 92.91
4	WPW10406243		Burners (left Rear, 6k)   (Replaces: 8286181)			Immediately	$ 39.08
4	WPW10406878		Burners (left Front, 17k)   (Replaces: 8286183)				$ 107.48
5	W10177201		Knob, Control (1) (black)   (Replaces: 7733P532-60)				$ 21.03
5	WPW10415451		Knob, Control (1) (stainless)   (Replaces: W10415451)				$ 21.38
5	W10177198		Knob, Control (1) (white)   (Replaces: 7733P533-60)				$ 84.89
6	W10272357		Bracket, Cooktop Support		Appelez-nous	-
7	W10177197		Knob, Control (3) (white)   (Replaces: 7733P527-60)				$ 20.29
7	WP7733P526-60		Knob, Control (3) (black)   (Replaces: 7733P526-60)			Immediately	$ 25.16
7	WPW10415450		Knob, Control (3) (stainless)   (Replaces: W10415450)			Immediately	$ 21.53
8	W10338215		Kit, Grate (gray)		Appelez-nous	-
8	WPW10338214		Kit, Grate (black)   (Replaces: W10338214)				$ 345.92
9	W10219248		Panel, Manifold (white)		Appelez-nous	-
9	W10219247		Panel, Manifold (black)		Appelez-nous	-
9	W10219249		Panel, Manifold (stainless)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
