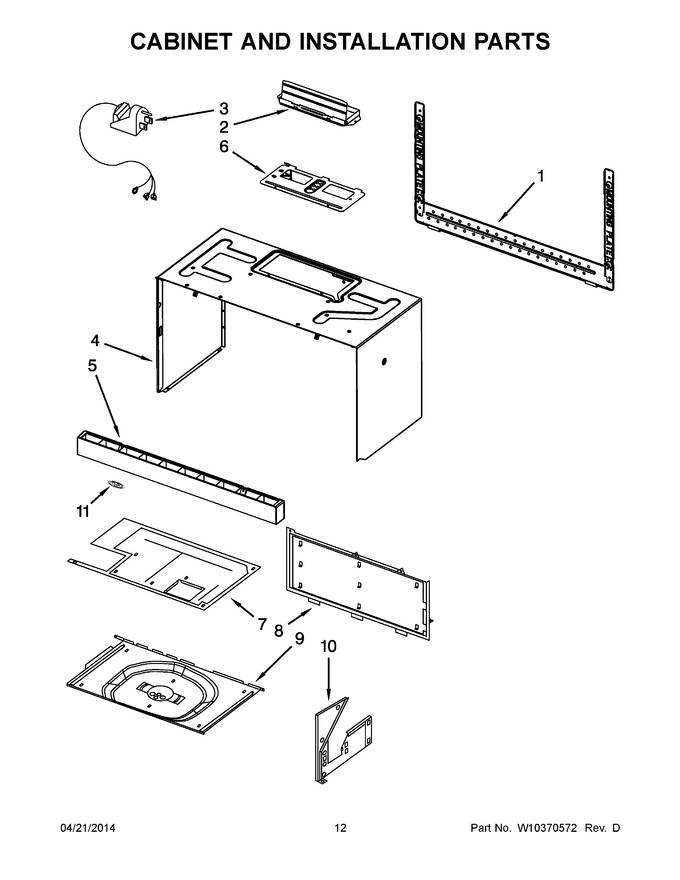

07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting (Replaces: W10245177) |
|
Immediately | $ 24.69 | ||||
| 2 | W10843943 | Damper (Replaces: 8206442) |
|
Immediately | $ 84.59 | ||||
| 3 | W10247765 | Cord, Power |
|
- | |||||
| 4 | WPW10244765 | Case, Outer (white) (Replaces: W10244765) |
|
$ 231.26 | |||||
| 4 | WPW10245176 | Case, Outer (black) (Replaces: W10245176) |
|
$ 231.26 | |||||
| 5 | W10245216 | Grille, Vent (stainless) |
|
$ 144.67 | |||||
| 5 | W10245218 | Grille, Vent (black) |
|
$ 104.95 | |||||
| 5 | W10245217 | Grille, Vent (white) |
|
$ 105.98 | |||||
| 6 | W10210832 | Cover, Hood Fan Motor |
|
$ 6.68 | |||||
| 7 | W10248268 | Assembly, Top Plate |
|
- | |||||
| 8 | W10248267 | Assembly, Back Plate |
|
- | |||||
| 9 | W10249318 | Assembly, Bottom Plate |
|
- | |||||
| 10 | W10248279 | Assembly, Right Plate |
|
- | |||||
| 11 | W10309983 | Nameplate |
|
- | |||||
| NI | W10821385 | Miscellaneous, Installation, Hardware (Replaces: 8206614) |
|
Immediately | $ 103.72 | ||||
| NI | W10190018 | Miscellaneous, Template, Upper |
|
Immediately | $ 7.55 | ||||
| NI | WP8169704 | Miscellaneous, 1/4-20x3`` Panhead Screw (Replaces: 8169704) |
|
Immediately | $ 13.35 | ||||
| NI | W10283312 | Miscellaneous, Main Harness |
|
- | |||||
| NI | W10539840 | Miscellaneous, Ground Wire To Connect Pcb (Replaces: 8205696) |
|
$ 25.08 | |||||
| NI | W10107760 | Miscellaneous, Ground Wire, Filter (for Stainless Model Only) |
|
- | |||||
| NI | W10245226 | Miscellaneous, Harness, Headlamp And Turntable |
|
- |
