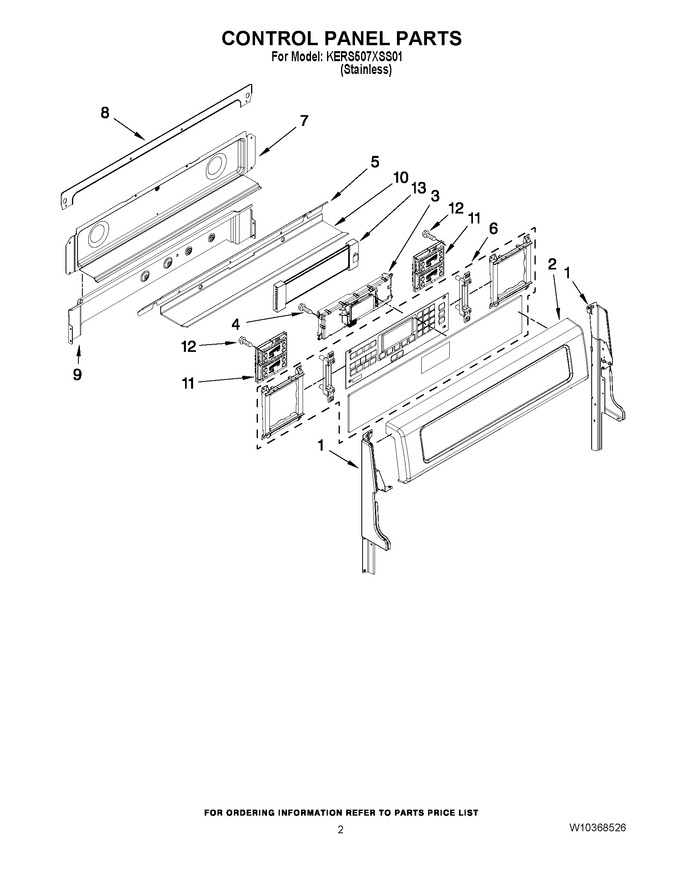

02 - Control Panel Parts


03 - Chassis Parts


04 - Upper Door Parts


05 - Lower Door Parts


06 - Internal Oven Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319111		Support, Backguard (black, Right)				$ 43.80
1	W10319109		Support, Backguard (black, Left)				$ 92.84
2	WPW10424185		Console   (Replaces: W10295103)				$ 380.92
3	W10335540		Electric, Control		Appelez-nous	-
4	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
5	WPW10299338		Shield, Wire   (Replaces: W10299338)				$ 96.60
6	W10295110		Assembly, Glass (incl. Bracket)				$ 237.64
7	W10296773		Cover, Backguard				$ 194.52
8	WPW10292689		Cover, Wire   (Replaces: W10292689)				$ 95.35
9	W10278697		Shield, Vent			Immediately	$ 183.33
10	W10334229		Shield, Backguard		Appelez-nous	-
11	WPW10277011		User Interface (left)   (Replaces: W10277011)				$ 337.86
12	WP3400702		Screw   (Replaces: 3400702)				$ 13.09
12	W10287257		User Interface (right)				$ 341.59
13	WPW10318787		Connector, Flex   (Replaces: W10318787)				$ 119.94
