01 - Cooktop Parts

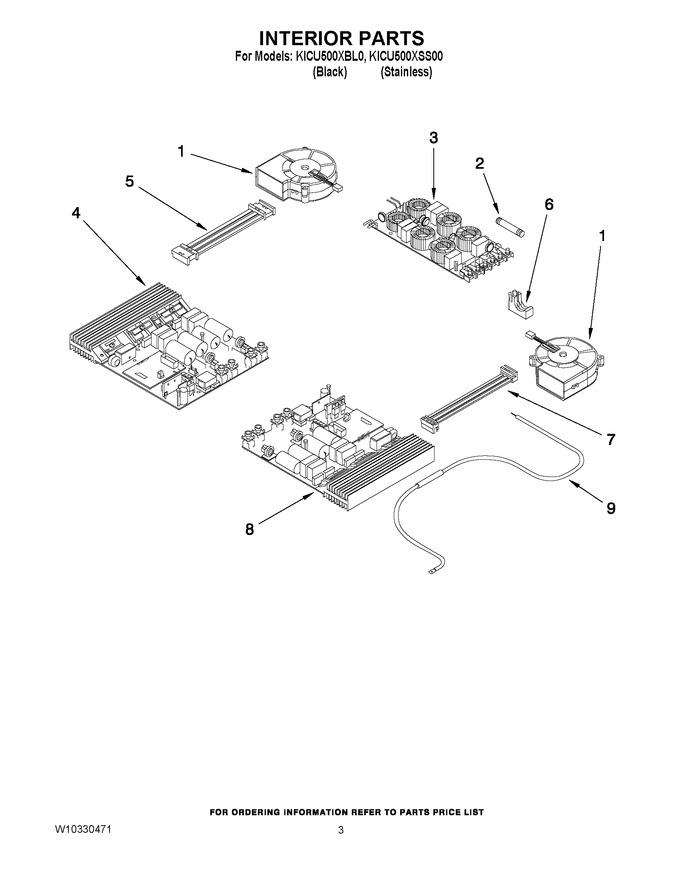

02 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10328381 | Fan, Blower (lh) |
|
Immediately | $ 360.00 | ||||
| 1 | W10328378 | Fan, Blower (rh) |
|
$ 362.13 | |||||
| 2 | WPW10328492 | Fuse (Replaces: W10328492) |
|
Immediately | $ 121.43 | ||||
| 3 | W10328481 | Control-elec (rh) |
|
$ 185.06 | |||||
| 4 | W10328474 | Power Unit (lh) |
|
$ 369.01 | |||||
| 5 | W10328395 | Harness, Wire User Interface |
|
$ 105.59 | |||||
| 6 | W10328401 | Bracket, Mounting Conduit |
|
$ 258.72 | |||||
| 7 | W11428265 | Harness, Wire User Interface (Replaces: W10328396) |
|
$ 216.26 | |||||
| 8 | WPW10328487 | Power Unit (rh) (Replaces: W10328487) |
|
$ 434.51 | |||||
| 9 | WPW10328397 | Harness, Wire Main (Replaces: W10328397) |
|
Immediately | $ 168.89 | ||||
| NI | W10328499 | Kit, Mounting Marble Countertop |
|
$ 276.81 | |||||
| NI | W10310006A | Adhesive, Marble Countertop (Replaces: W10310006) |
|
$ 226.79 |
