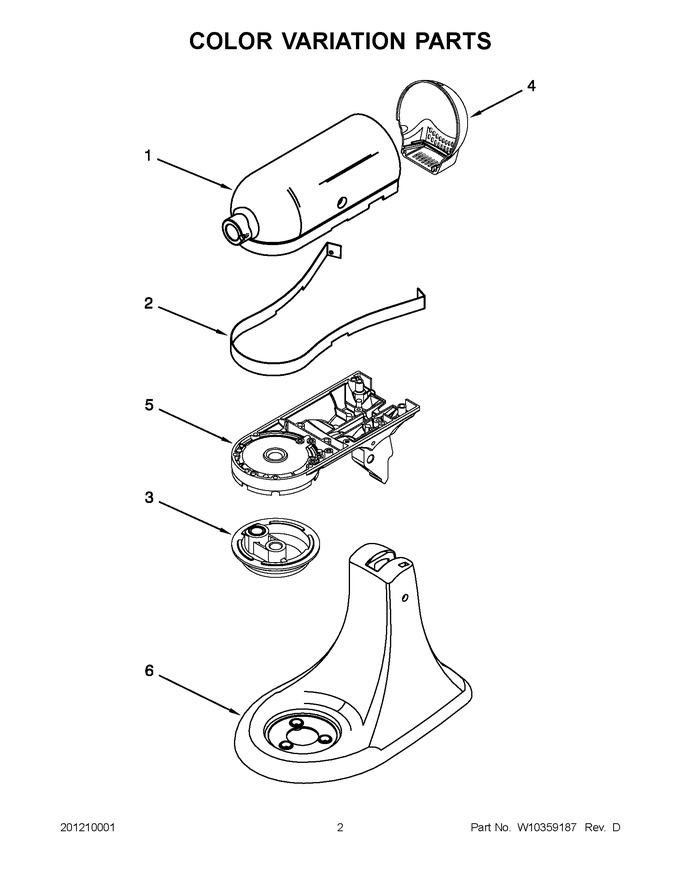

01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit
03 - Motor And Control Unit Parts
04 - Base And Pedestal Unit
05 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10121193 | Motor Housing (silver Metallic) |
|
- | |||||
| 1 | 240291-20 | Motor Housing (majestic Yellow) |
|
- | |||||
| 1 | 9704790 | Motor Housing-imperial Black |
|
- | |||||
| 1 | 9709688 | Motor Housing (green Apple) |
|
- | |||||
| 1 | WP240291-13 | Motor Housing (onyx Black) (Replaces: 240291-13) |
|
$ 101.67 | |||||
| 1 | WP240291-7 | Motor Housing (cobalt Blue) (Replaces: 240291-7) |
|
$ 98.13 | |||||
| 1 | W10349279 | Motor Housing (silver) |
|
$ 105.44 | |||||
| 1 | WP240291-21 | Motor Housing (empire Red) (Replaces: 240291-21) |
|
$ 101.29 | |||||
| 2 | W10348219 | Trim Band (black) |
|
- | |||||
| 3 | 9709685 | Planetary (green Apple) |
|
- | |||||
| 3 | 9704797 | Planetary-imperial Black |
|
- | |||||
| 3 | W11084831 | Planetary-empire Red (Replaces: 240286-23) |
|
$ 27.92 | |||||
| 3 | W11199173 | Planetary-onyx Black (Replaces: 240286-16) |
|
$ 32.71 | |||||
| 3 | 9706670 | Planetary (silver Metallic) (Replaces: W10121190) |
|
Immediately | $ 45.31 | ||||
| 3 | 240286-22 | Planetary-majestic Yellow |
|
- | |||||
| 3 | W10349281 | Planetary (silver) |
|
- | |||||
| 3 | W10342514 | Planetary-cobalt Blue (Replaces: 240286-10) |
|
$ 45.31 | |||||
| 4 | W10121188 | End Cover (silver Metallic) |
|
- | |||||
| 4 | 240253-21 | End Cover-majestic Yellow |
|
- | |||||
| 4 | 240253-8 | End Cover-cobalt Blue |
|
$ 46.79 | |||||
| 4 | 9709683 | End Cover (green Apple) |
|
- | |||||
| 4 | 9704805 | End Cover (imperial Black) |
|
- | |||||
| 4 | W10348293 | End Cover (silver) |
|
- | |||||
| 4 | W11084313 | End Cover-empire Red (Replaces: 240253-22) |
|
$ 29.89 | |||||
| 4 | 240253-14 | End Cover-onyx Black |
|
$ 48.42 | |||||
| 5 | WP240350-56 | Lower Gearcase-onyx Black (Replaces: 240350-56) |
|
$ 108.70 | |||||
| 5 | W10349276 | Lower Gearcase (silver) |
|
- | |||||
| 5 | WP240350-84 | Lower Gearcase-empire Red (Replaces: 240350-84) |
|
$ 65.91 | |||||
| 5 | W10121196 | Lower Gearcase (silver Metallic) |
|
$ 66.83 | |||||
| 5 | 240350-82 | Lower Gearcase-majestic Yellow |
|
- | |||||
| 5 | 9707103 | Lower Gearcase-imperial Black |
|
- | |||||
| 5 | 240350-31 | Lower Gearcase (cobalt Blue) |
|
- | |||||
| 5 | 9709691 | Lower Gearcase (green Apple) |
|
- | |||||
| 6 | W10121199 | Pedestal W/feet (silver Metallic) |
|
- | |||||
| 6 | 3179275 | Pedestal W/feet (onyx Black) |
|
- | |||||
| 6 | W11131262 | Pedestal W/feet (empire Red) (Replaces: 9702304) |
|
$ 97.71 | |||||
| 6 | 9707100 | Pedestal W/feet (imperial Black) |
|
- | |||||
| 6 | 3179263 | Pedestal W/feet (cobalt Blue) |
|
- | |||||
| 6 | 9709694 | Pedestal W/feet (green Apple) |
|
- | |||||
| 6 | W10348330 | Pedestal W/feet (silver) |
|
- | |||||
| 6 | 9702303 | Pedestal W/feet (majestic Yellow) |
|
- |
