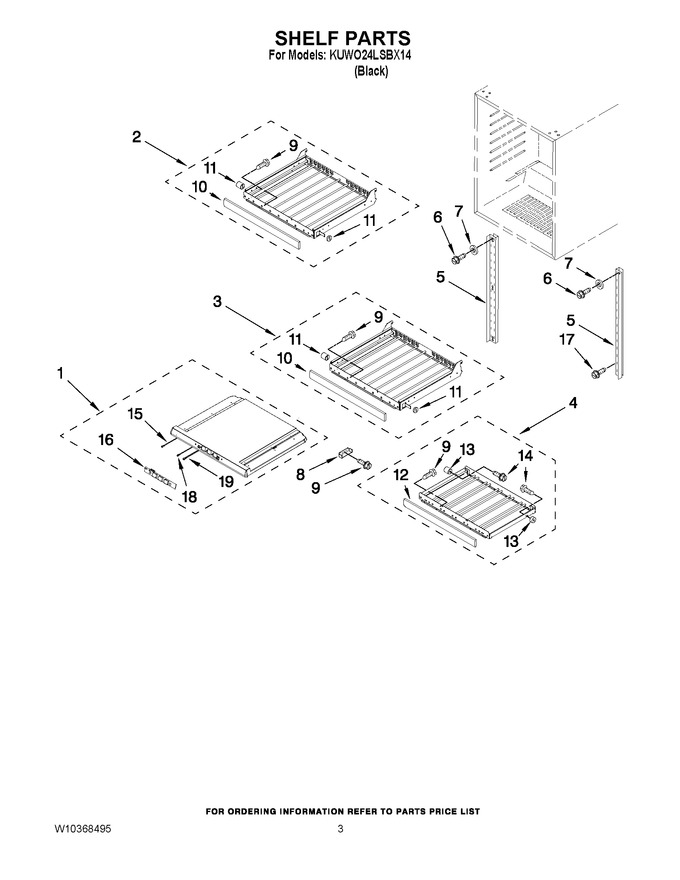

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Shelf Parts


03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10297314		Temperature Separator				$ 381.71
2	4344846		Wine Rack, (4)		Appelez-nous	-
3	4344847		Wine Rack, (1)		Appelez-nous	-
4	4344849		Wine Rack, Lower		Appelez-nous	-
5	W10299080		Ladder, Shelf (left Side)		Appelez-nous	-
5	W10299079		Ladder, Shelf (right Side)		Appelez-nous	-
6	4344794		Screw		Appelez-nous	-
7	4344795		Washer		Appelez-nous	-
8	4344850		Stop, Lower Rack		Appelez-nous	-
9	4344851		Screw		Appelez-nous	-
10	W10239372		Trim, Top And Middle Racks		Appelez-nous	-
11	4344866		Support (right)		Appelez-nous	-
11	4344867		Support (left)		Appelez-nous	-
12	W10239373		Trim, Lower Rack		Appelez-nous	-
13	4344885		Support, Bumper (right)		Appelez-nous	-
13	4344886		Support, Bumper (left)		Appelez-nous	-
14	4344914		Screw (right)		Appelez-nous	-
14	4344915		Screw (left)		Appelez-nous	-
15	W10238024		Transformer Cable		Appelez-nous	-
16	W10282164		Pcb Display Board				$ 391.62
17	W10162986		Screw W/washer		Appelez-nous	-
18	W10238025		Sensor Assy, Top				$ 131.24
19	W10238026		Sensor Assy				$ 138.18
NI	W10239384		Seal		Appelez-nous	-
NI	W10238189		Support		Appelez-nous	-
NI	W10239385		Support Spacer		Appelez-nous	-
NI	W10325066		Overlay, Display		Appelez-nous	-
NI	W10238031		Led Spacer		Appelez-nous	-
NI	W10204809		Screw, Cover		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
