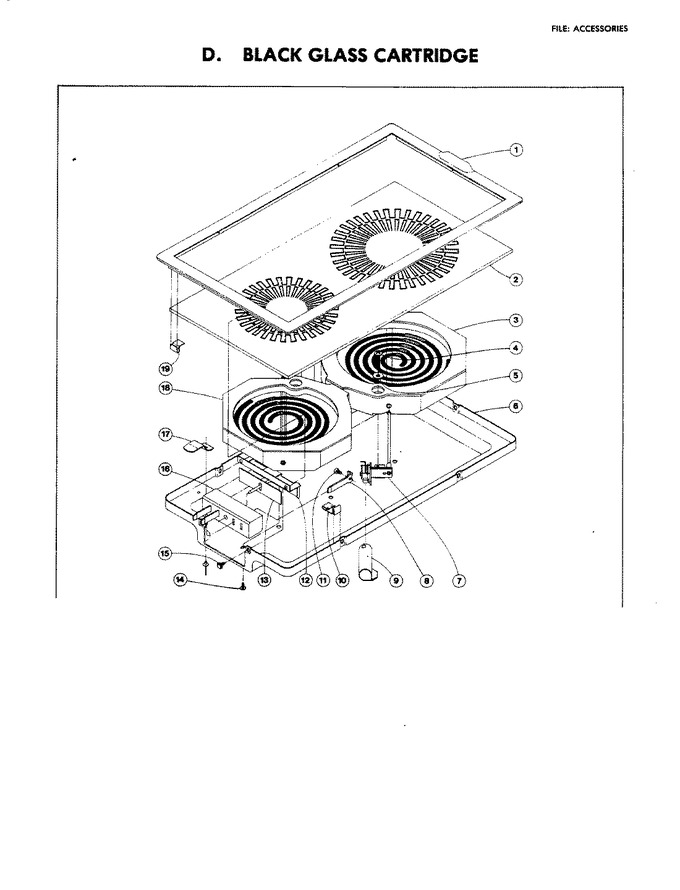

01 - Black Glass Cartridge


02 - Cartridges (white Glass)


03 - Grill Cartridge


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y700640		Cartridges , Bright Rim		Appelez-nous	-
2	Y700522		Black Glass		Appelez-nous	-
3	700513		Element Block				$ 29.06
3	700841		Element Block		Appelez-nous	-
4	700646		Screw		Appelez-nous	-
5	700647		Washer Flat		Appelez-nous	-
6	708828		Cartridge Pan				$ 371.19
6	708941		Pan, Cartridge(208v)		Appelez-nous	-
7	Y700524		Thermal Limiter 6`` Element		Appelez-nous	-
7	Y700523		Thermal Limiter 8`` Element		Appelez-nous	-
8	Y708572		Spade, Contact			Immediately	$ 12.60
9	700641		Cover		Appelez-nous	-
10	Y708910		Clip		Appelez-nous	-
11	WP488234		Screw   (Replaces: 708861)				$ 6.74
11	WP488234		Screw   (Replaces: Y700448)				$ 6.74
12	Y700648		Bracket, Retaining Assy.		Appelez-nous	-
13	708834		Insulator, Contact Spade				$ 14.99
14	WP59002061		Screw   (Replaces: Y707172)				$ 7.75
15	WP12990527		Screw   (Replaces: Y708955)			Immediately	$ 7.94
16	WPY708730		Block, Terminal   (Replaces: Y708730)				$ 97.15
17	708880		Location Bracket		Appelez-nous	-
17	715956		Rivet		Appelez-nous	-
18	700512		Element Block 6`` (240v)				$ 29.06
18	Y700840		Element Block 6`` (208v)		Appelez-nous	-
19	700649		Wire Sleeve		Appelez-nous	-
19	700528		Tinnerman Clip			Immediately	$ 60.14
19	700643		Wire		Appelez-nous	-
19	700644		Wire, Cream		Appelez-nous	-
19	Y700645		Wire		Appelez-nous	-
19	W10841140		Adhesive/sealant 3 Oz.   (Replaces: Y700838)			Immediately	$ 27.69
19	W10841140		Adhesive/sealant 12 Oz.   (Replaces: Y708930)			Immediately	$ 27.69
