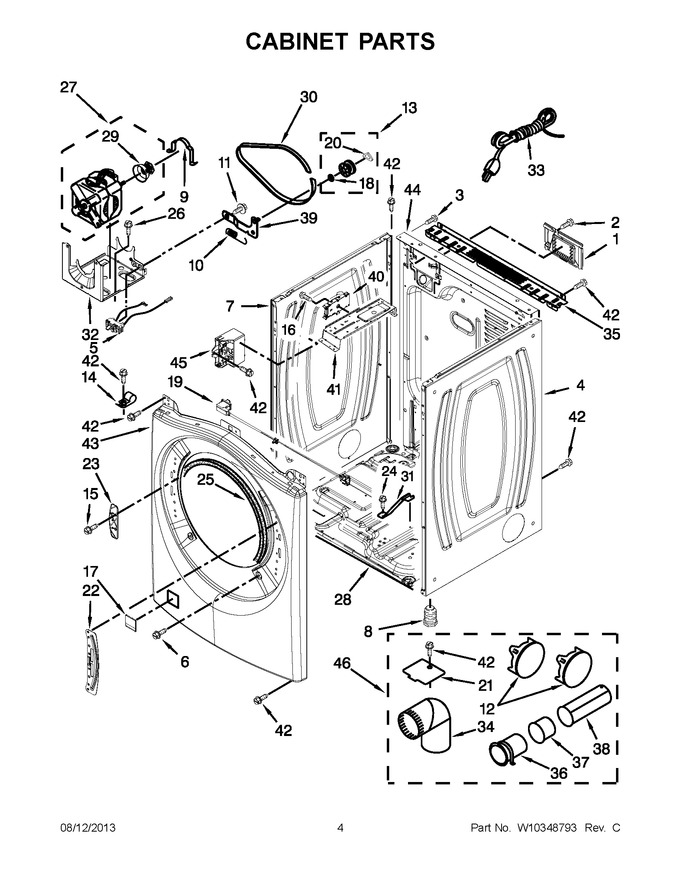

02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - W10307147 Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10819767 | Cover, Terminal Block (Replaces: 8317339) |
|
- | |||||
| 2 | WP90767 | Screw (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 3 | W10850756 | Screw (Replaces: 8533974) |
|
$ 8.20 | |||||
| 4 | W10337791 | Panel, Side (r.h.) (red) |
|
- | |||||
| 4 | W11310043 | Panel, Side (r.h.) (white) (Replaces: W10280028) |
|
$ 308.13 | |||||
| 4 | W10316279 | Panel, Side (r.h.) (silver) |
|
- | |||||
| 5 | WPW10411937 | Switch, Broken Belt (Replaces: W10246525) |
|
Immediately | $ 36.06 | ||||
| 6 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 7 | W10337789 | Panel, Side (l.h.) (red) |
|
- | |||||
| 7 | W10249727 | Panel, Side (l.h.) (silver) |
|
$ 147.25 | |||||
| 7 | W11233548 | Panel, Side (l.h.) (white) (Replaces: W10192435) |
|
$ 261.33 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | WPW10404617 | Plug, Multivent (midnight Grey) (Replaces: W10404617) |
|
$ 75.58 | |||||
| 13 | 279640 | Assembly, Pulley (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 14 | 3978776 | Bracket, Gas Pipe |
|
- | |||||
| 15 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.73 | |||||
| 16 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 17 | W10249704 | Plug, Front Panel (silver) |
|
- | |||||
| 17 | W10811916 | Plug, Front Panel (white) (Replaces: 8564457) |
|
$ 16.50 | |||||
| 17 | W10256411 | Plug, Front Panel (red) |
|
$ 30.31 | |||||
| 18 | WPW10121334 | Washer (Replaces: W10121334) |
|
Immediately | $ 7.55 | ||||
| 19 | W10267834 | Door Switch Assembly |
|
$ 50.06 | |||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10354249 | Plate, Cover (Replaces: W10354249) |
|
$ 9.41 | |||||
| 22 | W10208218 | Bracket, Door Hinge |
|
$ 15.16 | |||||
| 23 | WPW10208250 | Strike, Door (Replaces: W10208250) |
|
$ 43.86 | |||||
| 24 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 25 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 26 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 27 | 279787 | Motor Assembly (60 Hz.) (Replaces: 8538263) |
|
Immediately | $ 235.65 | ||||
| 28 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 365.36 | |||||
| 29 | W10837625 | Pulley, Motor (Replaces: 8578220) |
|
Immediately | $ 12.77 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 31 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 32 | W11481730 | Bracket, Motor Mounting (Replaces: W10242878) |
|
Immediately | $ 94.84 | ||||
| 33 | W11628810 | Cord, Power (Replaces: 3401401) |
|
$ 101.90 | |||||
| 34 | WPW10416072 | Elbow (Replaces: W10416072) |
|
$ 28.16 | |||||
| 35 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 46.18 | |||||
| 36 | WP8563747 | Pipe, Exhaust (medium) (Replaces: 8563747) |
|
$ 95.95 | |||||
| 37 | WPW10331278 | Pipe, Exhaust (short) (Replaces: W10331278) |
|
$ 82.90 | |||||
| 38 | WP8563749 | Pipe, Exhaust (long) (Replaces: 8563749) |
|
$ 93.24 | |||||
| 39 | W10837240 | Bracket, Idler (Replaces: 3388674) |
|
Immediately | $ 35.78 | ||||
| 40 | WPW10378252 | Control Board (Replaces: W10326372) |
|
Immediately | $ 411.81 | ||||
| 41 | W10259611 | Bracket, Control |
|
$ 127.30 | |||||
| 42 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 43 | W10337783 | Panel, Front (red) |
|
$ 350.34 | |||||
| 43 | W10208192 | Panel, Front (white) |
|
- | |||||
| 43 | W10316296 | Panel, Front (silver) |
|
$ 154.40 | |||||
| 44 | W10487430 | Panel, Rear (Replaces: W10247569) |
|
Immediately | $ 357.12 | ||||
| 45 | 3407228 | Power Cube Assembly |
|
$ 128.68 | |||||
| 46 | W10323246 | Kit, 4-way Vent |
|
Immediately | $ 89.96 | ||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 |
