SELECT A DIAGRAM

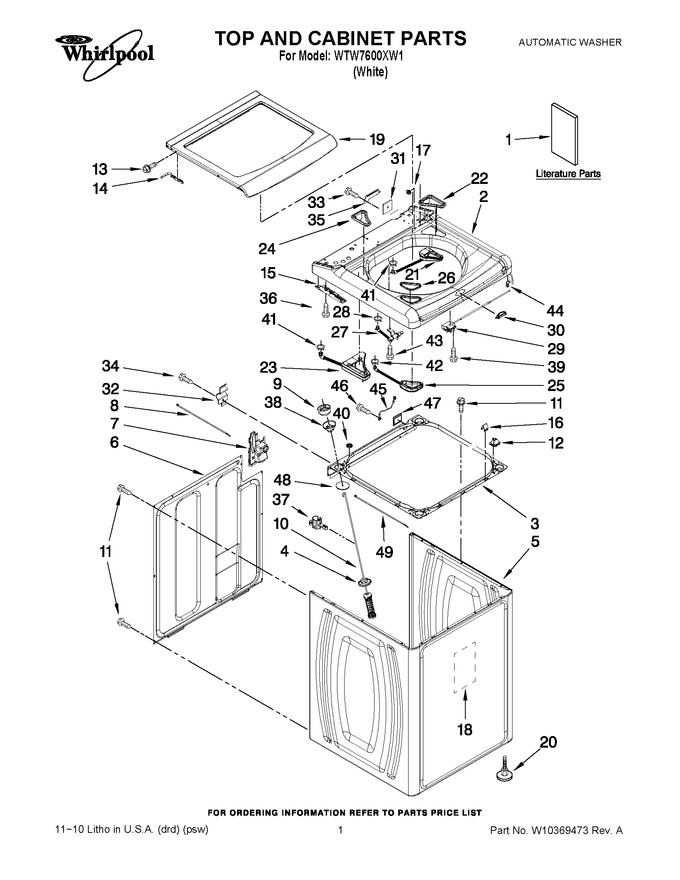

01 - Top And Cabinet Parts


02 - Control Panel Parts


03 - Motor, Basket And Tub Parts


04 - Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10240438		Installation Instructions (english/french)		Appelez-nous	-
1	W10298613		Energy Guide		Appelez-nous	-
1	W10351412		Tech Sheet		Appelez-nous	-
1	W10330928		Use & Care Guide		Appelez-nous	-
1	W10240439		Installation Instructions (spanish)		Appelez-nous	-
2	WP3957177		Top   (Replaces: 3957177)				$ 373.58
3	W10162604		Frame Assembly, Cabinet Top (includes Item 47)		Appelez-nous	-
4	WP8564017		Cup, Suspension   (Replaces: 8564017)				$ 28.79
5	8566097		Cabinet		Appelez-nous	-
6	8566090		Panel, Rear				$ 131.63
7	WPW10160572		Retainer, Drain Hose Storage   (Replaces: W10160572)				$ 8.58
8	WPW10155270		Cable Tie   (Replaces: W10155270)				$ 7.02
9	W10198919		Ball, Suspension (set Of 4 - Includes Item 38)   (Replaces: W10111536)				$ 150.90
10	W10247710		Damper Assembly, Tub Suspension (set Of 4-includes Items 4, 9,38 & 48)   (Replaces: W10237427)			Immediately	$ 185.21
11	WP489069		Screw, 8-18 X 3/8   (Replaces: 1157158)			Immediately	$ 8.40
12	W10042120		Locator, Top				$ 7.04
13	WPW10119828		Screw, Lid Hinge Mounting   (Replaces: W10119828)			Immediately	$ 7.55
14	WP8563964		Hinge Arm, Lid   (Replaces: 8563964)			Immediately	$ 9.19
15	WPW10309358		Hinge, Spring Assembly (right)   (Replaces: W10309358)				$ 148.01
15	WPW10309357		Hinge, Spring Assembly (left)   (Replaces: W10309357)				$ 153.54
16	WP8563785		Lock, Top-front   (Replaces: 8563785)				$ 7.96
17	WP8546627		Bearing, Lid Hinge   (Replaces: 8546627)				$ 94.75
18	W11096159		Cabinet-damper, Sound   (Replaces: W10177046)				$ 28.73
19	WPW10110852		Lid, Glass Assembly   (Replaces: W10110852)				$ 437.85
20	W10240448		Foot Assembly, Leveling				$ 5.85
21	W10304126		Dispenser, Fabric Softener				$ 112.38
22	WPW10136371		Bezel, Fabric Softener Dispenser   (Replaces: W10136371)				$ 31.00
23	W10304121		Dispenser, Bleach				$ 69.03
24	WP8563876		Bezel, Bleach Dispenser   (Replaces: 8563876)				$ 30.27
25	W10304119		Dispenser, Detergent				$ 65.78
26	WP8563877		Bezel, Detergent Dispenser   (Replaces: 8563877)				$ 31.91
27	W10304118		Nozzle Assembly, Fresh Water				$ 34.23
28	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.82
29	WPW10619844		Lock Assembly, Lid   (Replaces: W10059230)			Immediately	$ 155.46
30	8572019		Bezel, Lid Lock				$ 39.65
31	W10161707		Top Foam Seal		Appelez-nous	-
32	WP8564456		Hinge, Top   (Replaces: 8564456)				$ 96.01
33	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
34	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
35	8563941		Cover, Harness				$ 87.73
36	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
37	8543784		Bracket, Drain Hose				$ 37.38
38	W10198919		Bushing, Suspension (set Of 4-includes Item 9)   (Replaces: W10167599)				$ 150.90
39	WP8281136		Screw, 10-16 X 3/4   (Replaces: 8281136)				$ 7.30
40	8576476		Spacer, Rear (cabinet/top)				$ 17.57
41	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.82
42	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.82
43	W11700520		Screw, 10-16 X 9/16   (Replaces: 3400061)				$ 14.28
44	WP90016		Clip, Harness   (Replaces: 90016)				$ 11.89
45	3184020		Wire, Ground Jumper   (Replaces: 8281736)				$ 86.92
46	W10846509		Screw, 10-32 X 5/8   (Replaces: 3400076)			Immediately	$ 8.20
47	8578386		Shield, Wire Harness		Appelez-nous	-
48	WP8577896		Washer, Suspension Umbrella   (Replaces: 8577896)				$ 8.12
49	WPW10339879		Cable Tie   (Replaces: W10063340)				$ 8.30
