SELECT A DIAGRAM

01 - Top And Cabinet Parts

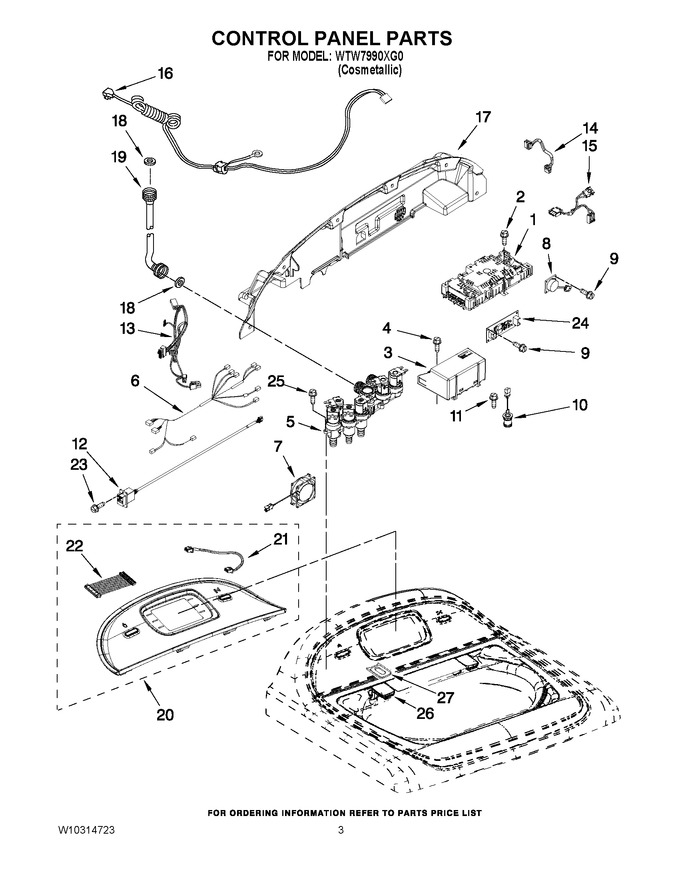

02 - Control Panel Parts


03 - Motor, Basket And Tub Parts


04 - Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10286071		Control Unit Assembly, Machine & Motor   (Replaces: W10286071)				$ 343.56
2	7101P650-60		Screw		Appelez-nous	-
3	W10280594		Power Supply				$ 123.19
4	W11311945		Screw, 8-18 X 1/2   (Replaces: 12990204)				$ 14.72
5	WPW10326917		Valve, Log   (Replaces: W10326917)				$ 372.58
6	WPW10331300		Harness, Log Valve   (Replaces: W10331300)				$ 175.64
7	W10285759		Fan		Appelez-nous	-
8	W10280595		Speaker				$ 35.44
9	W10300795		Screw, M2-0.4 X 8.75		Appelez-nous	-
10	W10280747		Led Assembly		Appelez-nous	-
11	W10300799		Screw, 8-18 X 1/2		Appelez-nous	-
12	W10280760		Jumper, Ui To Usb		Appelez-nous	-
13	W10280738		Jumper, User Interface		Appelez-nous	-
14	W10280736		Jumper, Ccu To Wide Iso		Appelez-nous	-
15	W10280742		Jumper, Main Power		Appelez-nous	-
16	W10051098		Cord Assembly, Power				$ 73.22
17	W10285715		Panel, Rear Console Cover				$ 57.87
18	WP16123		Washer, Water Inlet Hose   (Replaces: W10242307)				$ 8.16
19	WP89503		Hose, Water Inlet (hot Water)   (Replaces: 8571378)			Immediately	$ 24.09
19	WP89503		Hose, Water Inlet (cold Water)   (Replaces: W10194208)			Immediately	$ 24.09
20	W10285684		Panel, Console Facia Assembly		Appelez-nous	-
21	W10289382		Jumper, Atlas Audio To Hmi		Appelez-nous	-
22	W10167482		Wire Assembly, Main Connection		Appelez-nous	-
23	W10300815		Screw, M2-0.89 X 10		Appelez-nous	-
24	W10280598		Circuit Board, Wide Iso Ir				$ 227.15
25	WP8281136		Screw, 8-18 X 3/4   (Replaces: 8281136)				$ 7.30
26	W10285714		Hinge, Lid				$ 65.22
27	W10323407		Bezel, Hinge (right)				$ 32.57
27	W10323408		Bezel, Hinge (left)				$ 32.57

    View Diagram in Separate Window       Print Part List
