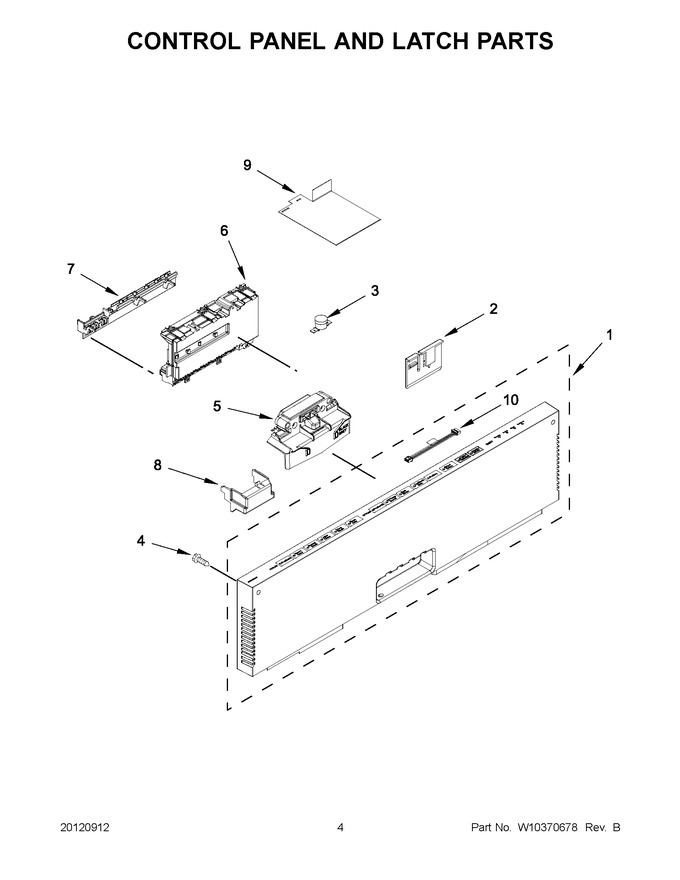

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10481151 | Console Assembly (black) (Replaces: W10346227) |
|
Immediately | $ 390.48 | ||||
| 2 | W11256107 | Clip, Control (Replaces: W10195237) |
|
$ 23.27 | |||||
| 3 | W10402110 | Bi-metal (Replaces: W10195528) |
|
Immediately | $ 33.34 | ||||
| 4 | WPW10348409 | Screw, Door (Replaces: W10348409) |
|
Immediately | $ 8.20 | ||||
| 5 | W10619006 | Switch And Latch Assembly (Replaces: W10195093) |
|
Immediately | $ 39.09 | ||||
| 6 | W10352499 | Control, Electronic |
|
$ 208.08 | |||||
| 7 | WPW10194937 | Brace, Connector (Replaces: W10194937) |
|
$ 30.56 | |||||
| 8 | W10783730 | Box, Connector (Replaces: W10401190) |
|
$ 31.41 | |||||
| 9 | W10355484 | Shield, Control |
|
- | |||||
| 10 | W10315814 | Wire, Jumper |
|
$ 23.68 |
