01 - Control Panel Parts

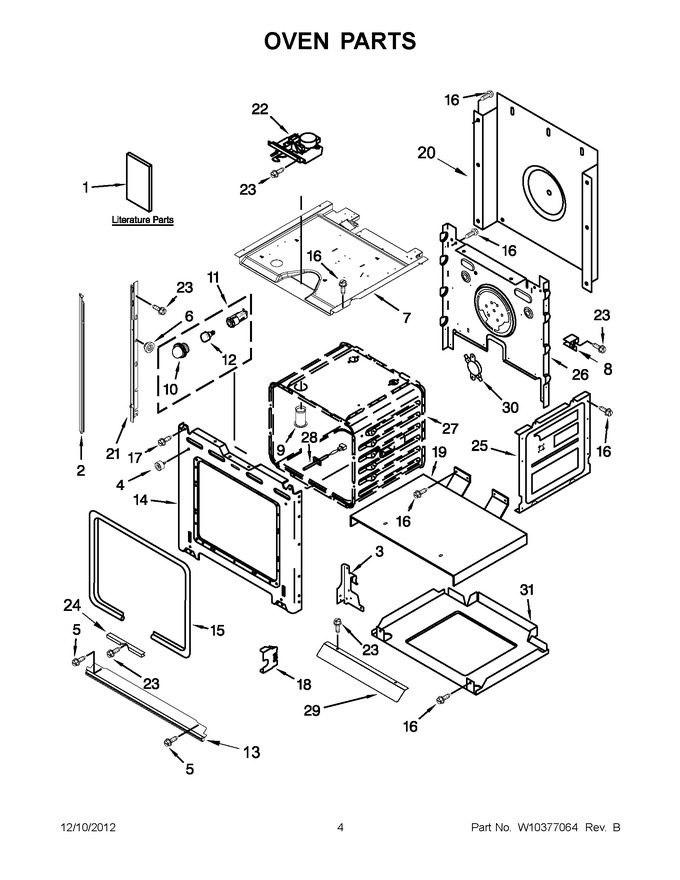

02 - Oven Parts


03 - Top Venting


04 - Oven Door


05 - Internal Oven Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10192049		Instructions, Installation		Appelez-nous	-
1	W10191015		Guide, Use & Care		Appelez-nous	-
1	8304571		Instructions, Undercounter		Appelez-nous	-
1	4457288		Instructions, Installation (template)		Appelez-nous	-
1	W10343435		Tech Sheet		Appelez-nous	-
1	9762761		Tips, Safer Cooking (english)		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2	W10136093		Trim, Side Right (black)		Appelez-nous	-
2	W10145005		Trim, Side Left (stainless)				$ 63.09
2	W10145004		Trim, Side Right (stainless)				$ 54.65
2	W10136092		Trim, Side Left (black)		Appelez-nous	-
2	W10339496		Trim, Side Left (white)				$ 61.46
2	W10339495		Trim, Side Right (white)				$ 54.05
3	WP4455605		Receiver, Hinge (left)   (Replaces: 4455605)			Immediately	$ 127.70
3	WP4455606		Receiver, Hinge (right)   (Replaces: 4455606)			Immediately	$ 131.74
4	W10105790		Bumper & Screw				$ 7.41
5	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
6	WP4448444		Grommet   (Replaces: 4448444)				$ 7.85
7	8303099		Chassis, Top				$ 70.97
8	4449845		Support, Bracket		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	W10067870		Lens, Light				$ 65.50
11	WPW10734065		Light, Rear Assembly   (Replaces: W10009930)				$ 101.46
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 54.49
13	W10151131		Assembly, Bottom Vent (stainless)		Appelez-nous	-
13	WPW10207689		Assembly, Bottom Vent (white)   (Replaces: W10207690)				$ 205.84
13	WPW10207689		Assembly, Bottom Vent (black)   (Replaces: W10207689)				$ 205.84
14	WPW10115831		Frame, Front   (Replaces: W10115831)				$ 351.89
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
16	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
18	4452152		Bracket, Bottom Vent				$ 35.18
19	4451478		Support, Insulation				$ 54.10
20	WP4451747		Cover, Back   (Replaces: 4451747)				$ 150.07
21	8303116		Rail, Side (left)		Appelez-nous	-
21	8303115		Rail, Side (right)				$ 164.47
22	WPW10195934		Latch, Motorized   (Replaces: W10195934)			Immediately	$ 333.71
23	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
24	WP4448933		Gasket, Retainer   (Replaces: 4448933)				$ 9.30
25	W10782197		Side, Panel   (Replaces: 4455641)				$ 150.69
26	W10161110		Back, Chassis		Appelez-nous	-
27	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
28	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 105.00
29	9760677		Deflector, Vent				$ 155.46
30	WP9759243		Thermostat, Oven   (Replaces: 9759243)			Immediately	$ 59.56
31	9759713		Base, Chassis (not Serviceable)				$ 100.19
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11684730		Insulation, Wrap, 30``   (Replaces: 4449316)				$ 124.85
NI	4450365		Insulation, Back				$ 70.95
NI	W10345262		Bracket, Oven Thermofuse				$ 35.45
