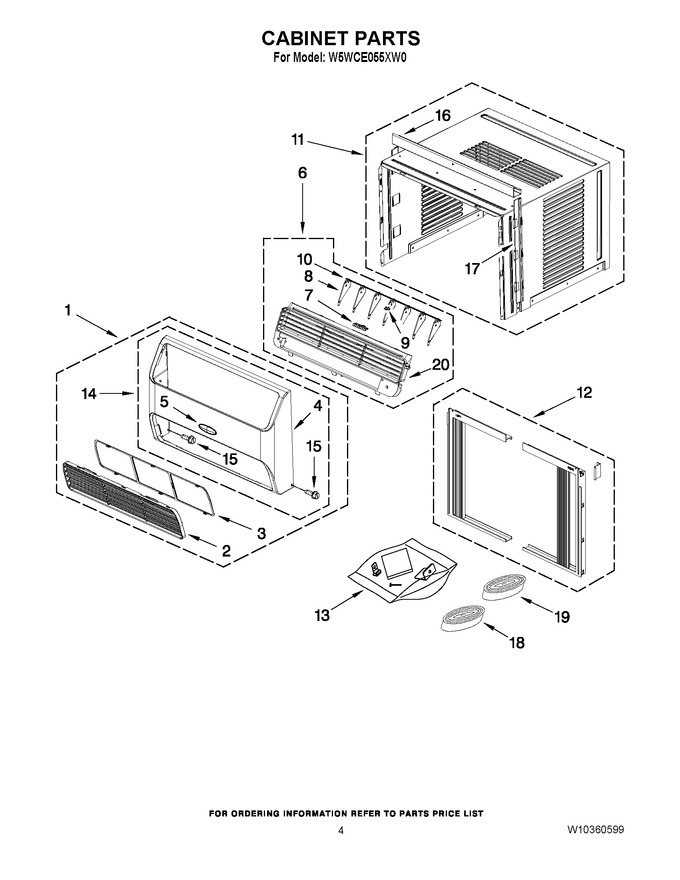

03 - Cabinet Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10361849 | Front Pnl Assy |
|
- | |||||
| 2 | W10369618 | Air Inlet Frame |
|
- | |||||
| 3 | W10369745 | Filter Assy |
|
- | |||||
| 4 | W10361851 | Front Case |
|
- | |||||
| 5 | W10369611 | Nameplate |
|
- | |||||
| 6 | W10368207 | Air Outlet Fr Assy |
|
- | |||||
| 7 | W10369369 | Manual Lever |
|
- | |||||
| 8 | W10361853 | Air Louver 2 |
|
- | |||||
| 9 | W10361855 | Air Louver 1 |
|
- | |||||
| 10 | W10361856 | Swing Lever |
|
- | |||||
| 11 | W10361842 | Cabinet Assy |
|
- | |||||
| 12 | W10361864 | Fixing Frame |
|
- | |||||
| 13 | W10361863 | Mtg Accessories |
|
- | |||||
| 14 | W10388550 | Panel Assy |
|
- | |||||
| 15 | W10388551 | Screw |
|
- | |||||
| 16 | W10388553 | Top Guide |
|
- | |||||
| 17 | W10361848 | Curtain |
|
- | |||||
| 18 | W10388557 | Seal |
|
- | |||||
| 19 | W10388558 | Seal |
|
- | |||||
| 20 | W10368208 | Air Outlet Frame |
|
- |
