SELECT A DIAGRAM

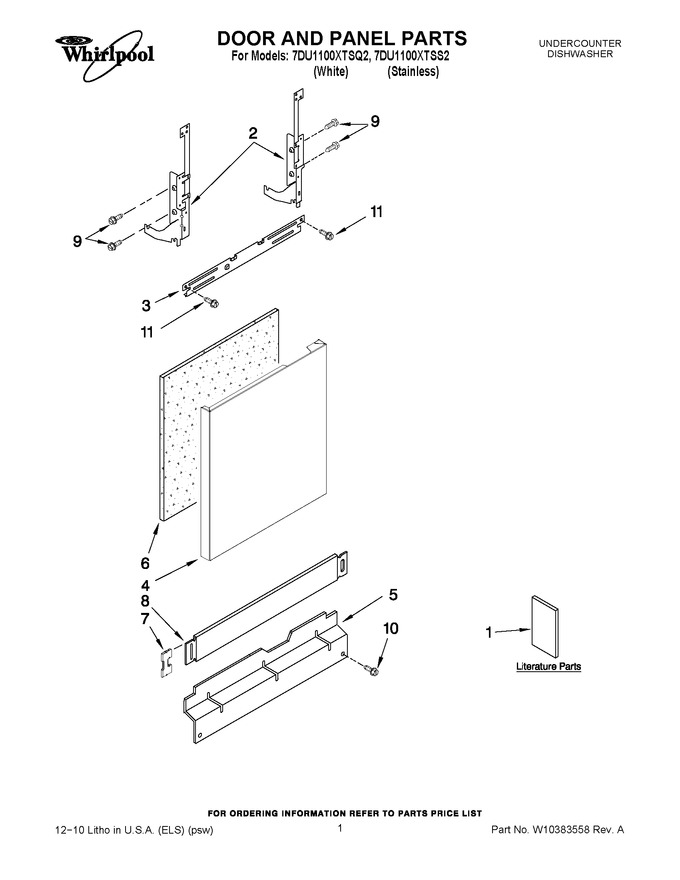

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Washarm Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10298409		Tech Sheet		Appelez-nous	-
1	W10282557		Instructions, Installation		Appelez-nous	-
1	W10102744		Guide, Use & Care		Appelez-nous	-
2	W11806566		Arm, Hinge (left)   (Replaces: W10143374)				$ 71.77
2	W11613572		Arm, Hinge (right)   (Replaces: W10143373)			Immediately	$ 83.93
3	W10331928		Stiffener, Door		Appelez-nous	-
4	WPW10274896		Panel Front (white)   (Replaces: W10274896)				$ 362.51
4	WPW10274902		Panel Front (stainless)   (Replaces: W10274902)			Immediately	$ 408.40
5	W11763736		Access Panel (black)   (Replaces: W10195777)			Immediately	$ 42.25
5	WPW10441007		Access Panel (white)   (Replaces: W10195778)				$ 170.94
6	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
7	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 11.21
8	W10871196		Toe Panel (includes No.7) (black)   (Replaces: 8573286)				$ 174.04
8	WP8573287		Toe Panel (includes No.7) (white)   (Replaces: 8573287)				$ 177.69
9	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
10	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
10	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
11	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 8.47

    View Diagram in Separate Window       Print Part List
