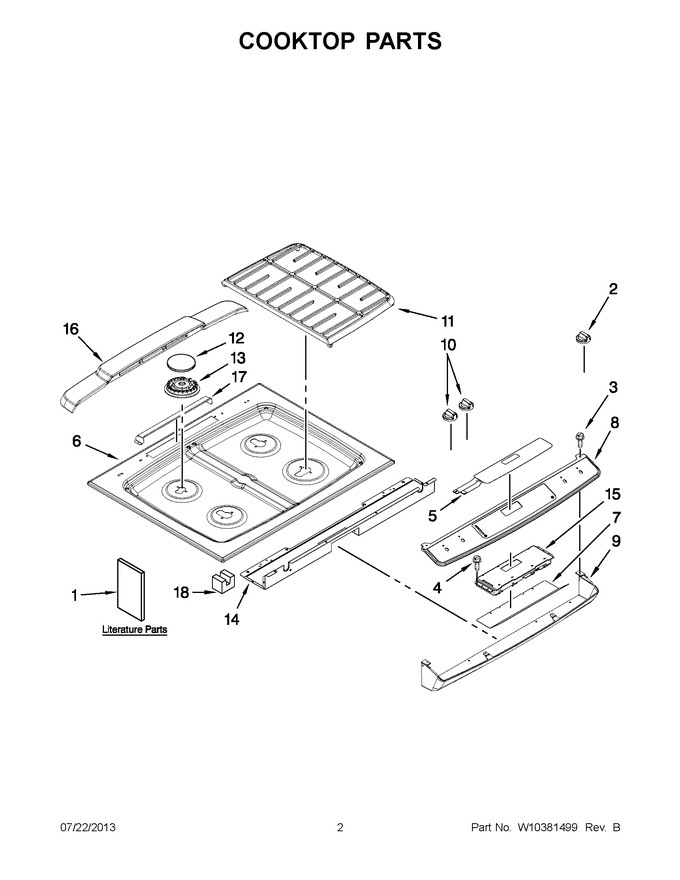

01 - Cooktop Parts


02 - Chassis Parts


03 - Manifold Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8113P679-60		Guide, Use & Care		Appelez-nous	-
1	W10160657		Wiring Diagram (english)		Appelez-nous	-
1	W10170430		Wiring Diagram (french)		Appelez-nous	-
1	8113P681-60		Installation Instructions		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
2	W10177201		Knob, Accusimmer (black)   (Replaces: 7733P532-60)				$ 21.03
3	7101P501-60		Screw		Appelez-nous	-
4	WP59002061		Screw   (Replaces: 7101P077-60)				$ 8.18
5	WPW10207933		Switch, Membrane (black)   (Replaces: W10207933)				$ 290.92
6	2001W231-09		Cooktop (black)		Appelez-nous	-
7	W10166279		Shield, Control		Appelez-nous	-
8	W10279069		Panel, Control (stainless)				$ 201.73
9	W10185606		Panel, Lower Control (black)				$ 130.08
10	WP7733P526-60		Knob, Burner (black)   (Replaces: 7733P526-60)			Immediately	$ 25.16
11	7518P485-60		Grate, Burner (black)		Appelez-nous	-
12	WPW10244447		Set, Burner Cap (black)   (Replaces: W10244447)				$ 200.90
13	WPW10406878		Base (burner Head, Ultra Rapid (17k) (right Front))   (Replaces: 8286183)				$ 107.48
13	WPW10406243		Base (burner Head, Auxiliary (6k) (left Rear))   (Replaces: 8286181)			Immediately	$ 39.08
13	WPW10406797		Base (burner Head, Rapid (12k) (left Front & Right Rear))   (Replaces: 8286182)				$ 92.91
14	3807F769-51		Support, Control Panel		Appelez-nous	-
15	8507P391-60		Control, (erc)				$ 421.07
16	7724P201-60		Cover, Vent		Appelez-nous	-
17	3601F221-45		Baffle, Vent Cover				$ 28.30
18	8255P412-60		Block, Element Support				$ 31.52
