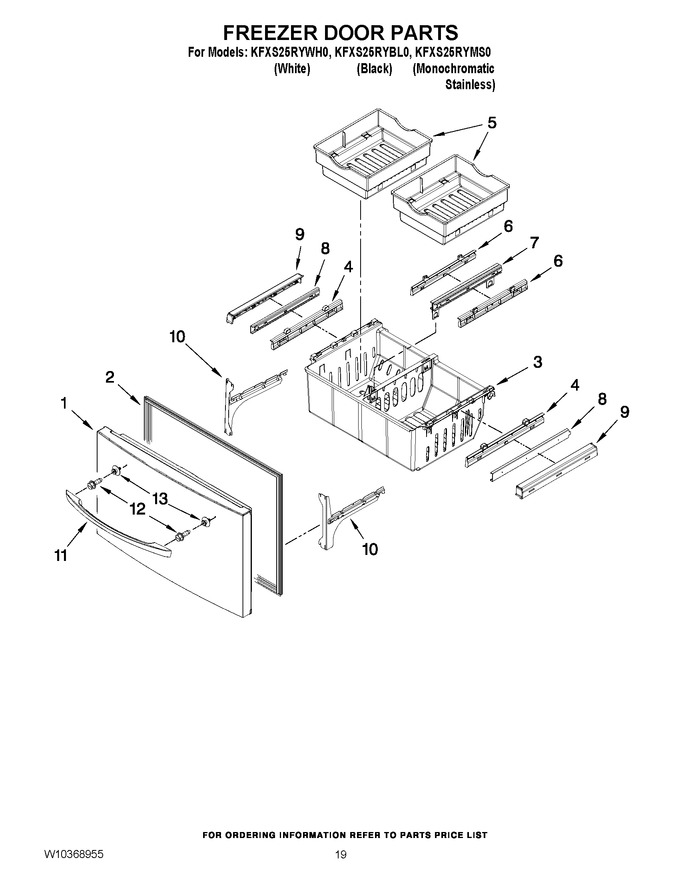

10 - Freezer Door Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107111WQ		Freezer Door (white)   (Replaces: 13107103W)				$ 688.14
1	13107111BQ		Freezer Door (black)   (Replaces: 13107103B)				$ 694.28
1	13107103S		Freezer Door (mono Stainless)		Appelez-nous	-
2	WPW10714545		Gasket, Door (apollo Grey)   (Replaces: W10164045)				$ 323.60
2	WPW10436253		Gasket, Door (black)   (Replaces: W10164044)				$ 360.89
2	WPW10443321		Gasket, Door (white)   (Replaces: W10164043)				$ 359.84
3	12924801SP		Bin, Lower		Appelez-nous	-
4	W10166742		Adapter, Bin (outer)   (Replaces: 12925403SP)				$ 98.12
5	WP12924903		Bin, Upper   (Replaces: 12924903)				$ 132.30
6	12925404SP		Adapter, Bin (inner)				$ 45.32
7	WPW10235357		Bracket/glide Assembly   (Replaces: W10235357)			Immediately	$ 330.98
9	W10826788		Retainer, Glide (left)   (Replaces: 12925501SP)				$ 57.50
9	WP67006368		Retainer, Glide (right)   (Replaces: 12925502SP)				$ 192.90
10	WPW10330993		Bracket, Door Slide (right)   (Replaces: W10122148)				$ 166.09
10	WPW10330991		Bracket, Door Slide (left)   (Replaces: W10122147)				$ 164.31
11	WPW10314522K		Handle-freezer (stainless)   (Replaces: W10314522)				$ 280.70
11	WPW10314520K		Handle-freezer (white)   (Replaces: W10314520)				$ 241.66
11	W10314521		Handle-freezer (black)		Appelez-nous	-
12	W10290759		Screw-handle				$ 5.83
13	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 12.56
