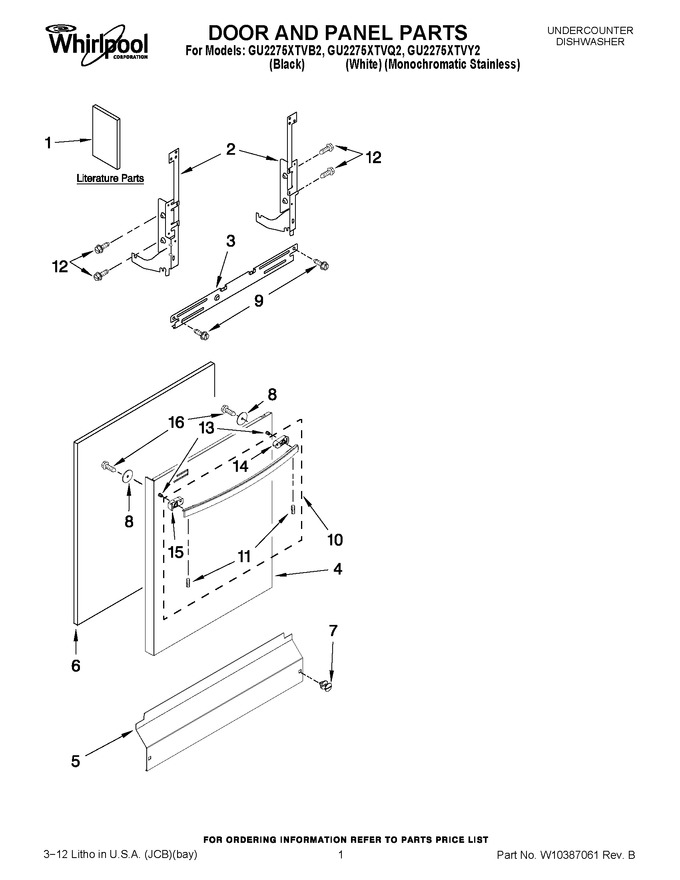

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10321859 | Energy Guide |
|
- | |||||
| 1 | W10401503 | Instructions, Installation |
|
- | |||||
| 1 | W10142781 | Guide, Use & Care English/french |
|
- | |||||
| 1 | W10142908 | Guide, Use & Care Spanish |
|
- | |||||
| 1 | W10142800 | Tech Sheet (english/french) |
|
- | |||||
| 2 | W11806566 | Arm, Hinge (left) (Replaces: W10143374) |
|
Immediately | $ 71.77 | ||||
| 2 | W11613572 | Arm, Hinge (right) (Replaces: W10143373) |
|
Immediately | $ 83.93 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | W10133134 | Panel Front (stainless) |
|
$ 168.13 | |||||
| 4 | W10133132 | Panel Front (white) |
|
$ 148.37 | |||||
| 4 | W10130955 | Panel Front (black) |
|
$ 136.09 | |||||
| 5 | WPW10526115 | Access Panel (white) (Replaces: W10369030) |
|
$ 175.17 | |||||
| 5 | WPW10526114 | Access Panel (black) (Replaces: W10369029) |
|
Immediately | $ 149.53 | ||||
| 6 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 96.23 | |||||
| 7 | WPW10503549 | Fastener (white) (Replaces: W10331793) |
|
Immediately | $ 7.77 | ||||
| 7 | WPW10503548 | Fastener (black) (Replaces: W10331789) |
|
Immediately | $ 30.39 | ||||
| 8 | W10142904 | Plate-backing |
|
$ 50.57 | |||||
| 9 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 10 | W10142998 | Handle (stainless) |
|
$ 91.71 | |||||
| 10 | W10142999 | Handle (black) |
|
- | |||||
| 10 | W10143000 | Handle (white) |
|
- | |||||
| 11 | WP8534008 | Screw (Replaces: 8534008) |
|
$ 9.37 | |||||
| 12 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.80 | ||||
| 13 | WP8564951 | Studs (Replaces: 8564951) |
|
Immediately | $ 19.33 | ||||
| 14 | W10131037 | Endcap, Right (midnight Grey) |
|
- | |||||
| 14 | W10130962 | Endcap, Right (black) |
|
$ 53.36 | |||||
| 14 | W10131030 | Endcap, Right (white) |
|
$ 55.90 | |||||
| 15 | W10131038 | Endcap, Left (midnight Grey) |
|
- | |||||
| 15 | W10131029 | Endcap, Left (white) |
|
$ 54.03 | |||||
| 15 | W10131028 | Endcap, Left (black) |
|
$ 37.29 | |||||
| 16 | W10123421 | Screw |
|
$ 12.83 |
