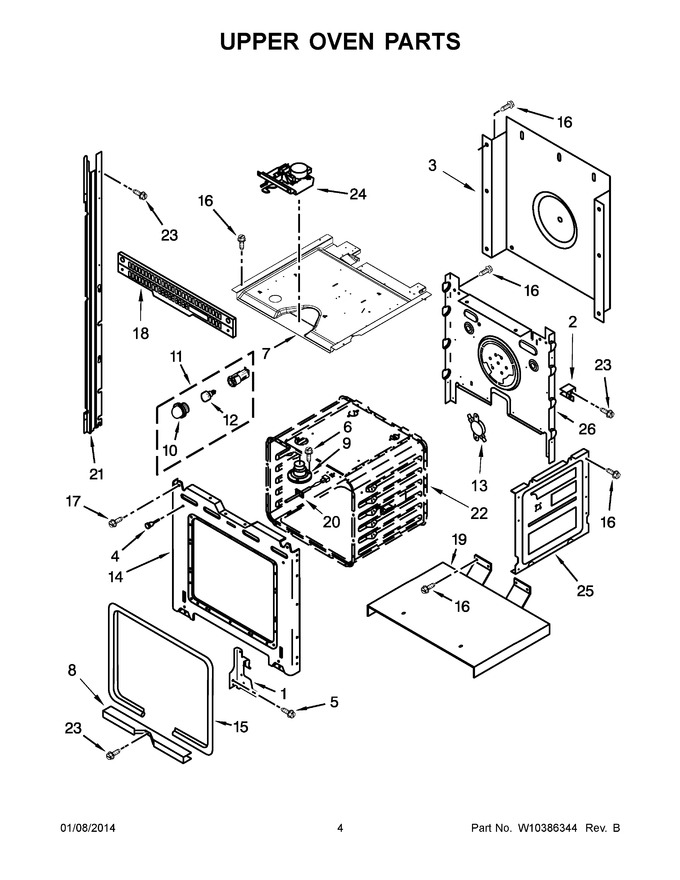

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4455605		Receiver, Hinge (left)   (Replaces: 4455605)			Immediately	$ 127.70
1	WP4455606		Receiver, Hinge (right)   (Replaces: 4455606)			Immediately	$ 131.74
2	4449845		Support, Bracket		Appelez-nous	-
3	WP4451747		Cover, Back   (Replaces: 4451747)				$ 150.07
4	W10105790		Bumper & Screw				$ 7.41
5	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
6	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
7	4455863		Chassis, Top				$ 117.60
8	WP4448933		Gasket, Retainer   (Replaces: 4448933)				$ 9.30
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	W10067870		Lens, Light				$ 65.50
11	WPW10734065		Assembly, Light   (Replaces: W10009930)				$ 101.46
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	WP9759243		Thermostat, Oven   (Replaces: 9759243)			Immediately	$ 55.44
14	9760754		Frame, Front				$ 132.66
15	WP4455380		Gasket, Door   (Replaces: 4455380)			Immediately	$ 174.79
16	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
18	W10358914		Trim, Center		Appelez-nous	-
19	4451476		Support, Insulation		Appelez-nous	-
20	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
21	WP8302793		Rail, Side (right)   (Replaces: 8302793)				$ 154.74
21	8302794		Rail, Side (left)				$ 164.19
22	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
23	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
24	WPW10195934		Latch, Motorized   (Replaces: W10195934)			Immediately	$ 288.66
25	W10782197		Side, Panel   (Replaces: 4455641)				$ 150.69
26	4452232		Back, Chassis		Appelez-nous	-
NI	N/P		Following Parts Not .illustrated		Appelez-nous	-
NI	WP4449314		Insulation, Wrap   (Replaces: 4449314)				$ 189.64
NI	WP4450363		Insulation, Back   (Replaces: 4450363)				$ 189.22
NI	WP4448444		Grommet, Mounting Rail   (Replaces: 4448444)				$ 7.85
